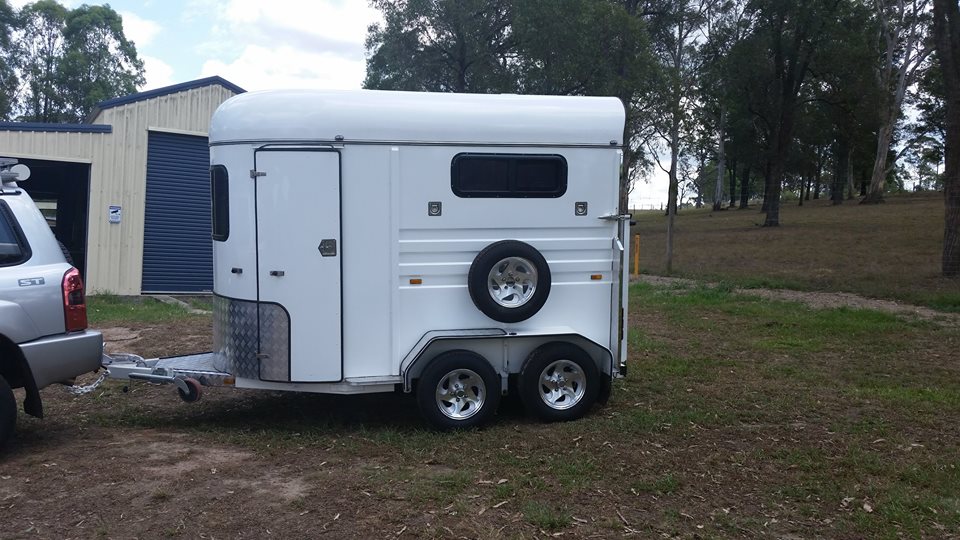

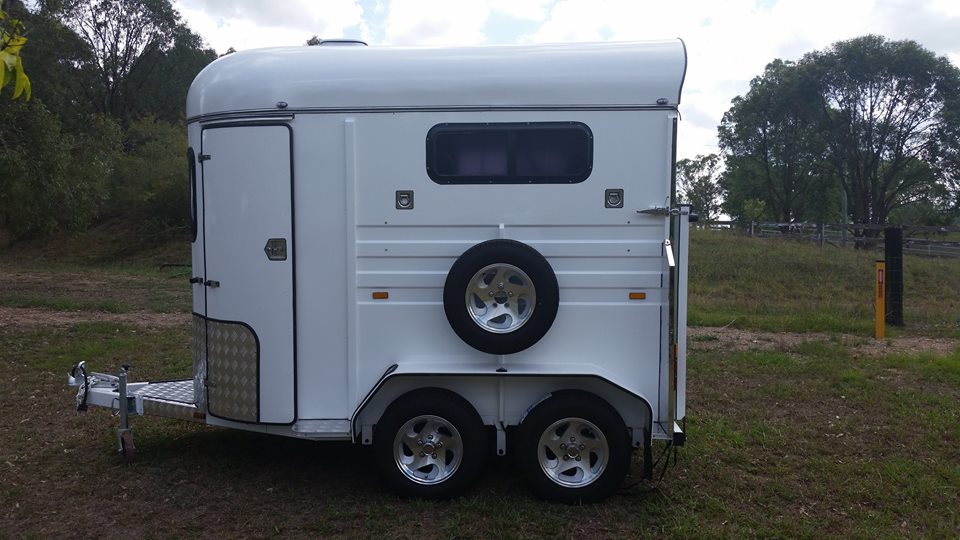

Standard Type 2 Horses Straight Load Horse Trailer
Our products include, but not limited to the following advantages:
1. The double hot dip galvanized chassis offers a 5-20 years guarantee against rusting in bad working condition (most factories use hot dip galvanized pipe welding. Although the steel doesn’t rust, the welding parts will. We choose the whole chassis galvanized after welding .
2. Different ATM will need different tyres . Three horse and more will choose 205R tyres which can keep transportation much safer also conform the ADRS.
3. 50*50 axles making the trailer more strong.
4. 17.5mm ultra thick anti-slip rupper floor.
5. Water tank including the level display, Show you the detailed information .
6. protection cover for gas struts in tailgate .
7. Gooseneck with big capacity adopts gas brake .
8. Beautiful style of closed front .
9. FRP roof is much tougher.
10. Upgated U shape big horse ring is tougher and more convenient.
11. Button lock in the cupboard , practical and convenient .
12. Australian standard coded Trail.
Horse float for 2 horses Standard type Horse float for 2 horses
Model | HR-2HSL-S |
Materials | Chassis Material: double hot dip galvanized RHS (3.5mm-4.0mm) |
Frame Material: double hot dip galvanized RHS (2.5mm) | |
Body Panel: galvanized sheet (1-1.5mm) | |
Roof: Special molded FRP 3mm | |
Brake | Perfect Security Structure Design，double axle electric brakes |
Drawbar | Drawbar Checker Plate 1.2mm aluminium |
Drawbar Safety Chain two & Bracing Wheel one | |
Suspension | Roll rocker tandem spring 5 plate |
Axles | Two special trailer axles 50*50mm |
Wheels & Tyre | Five 185R14C tyres and 14’ aluminum alloy rims including a spare wheel |
Rubber Matting | 18mm special plywood for floor& ramp door |
Rubber Matting For Inner Side Panel 6mm Rubber Matting | |
Rubber Matting For Floor & Ramp Door 17.5mm anti-slip rubber sheet | |
Pedal& Aluminium step | 1.2mm aluminium decoration board |
Windows & Doors | Front Window (mm) 1220*610 |
Side Windows one on each side | |

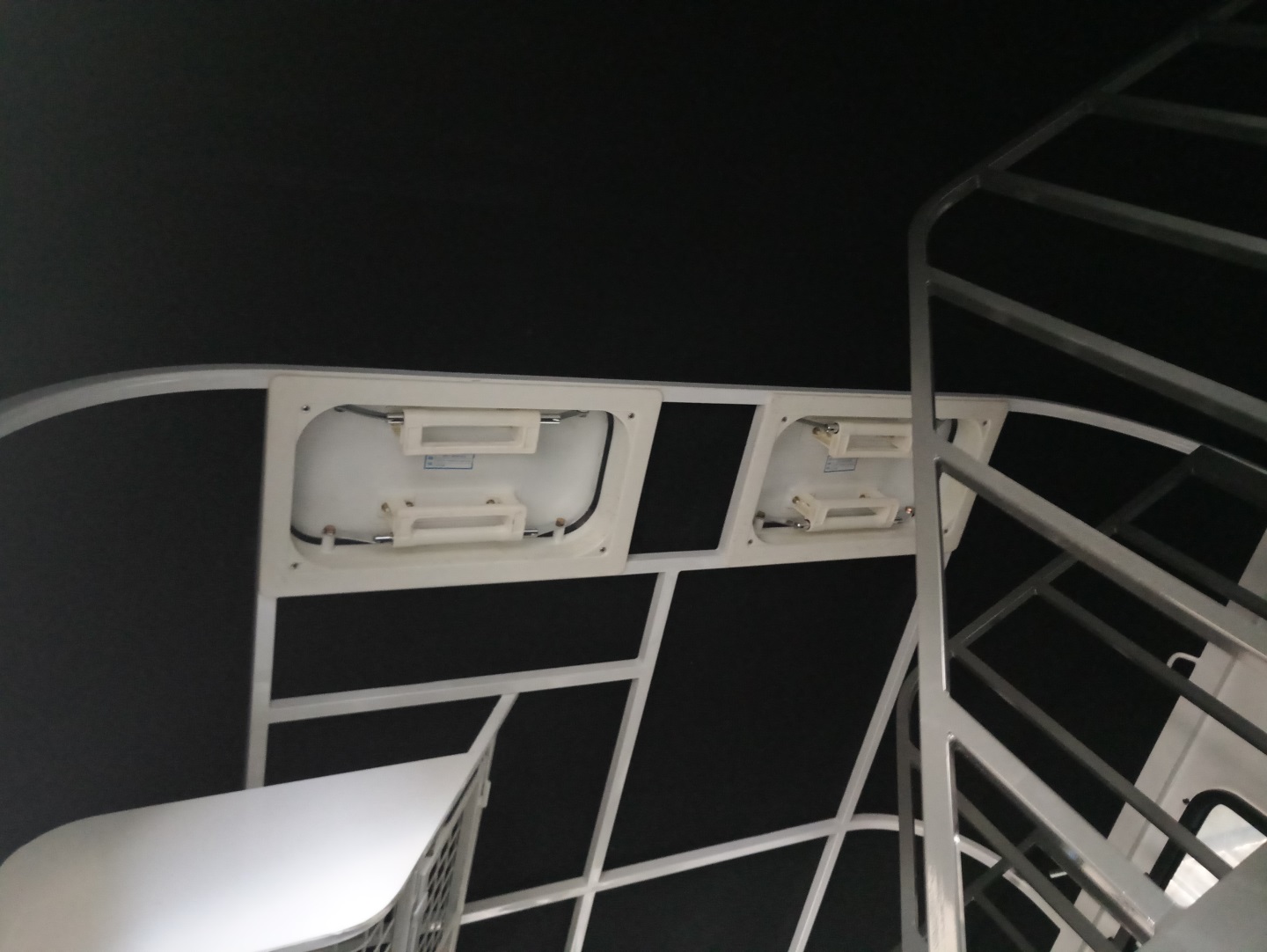

Vents two large size upturning ventilation windows | |
Rear Upper Door (mm) 1750*1065 Strut & High-intensity anti-rust strut | |
Ramp Door (mm) 1800*1210 | |
Side Door (mm) 1730*670 | |
Hinges for Rear Upper Door special 6mm diameter copper hinges | |
Supporting Wheel | Swing-able knight supporting wheels to make parking safe and reliable |
Lights& Petro Reflectors | Trailer Plug Seven-prongs Plug |
Rear Lights brackets aluminium | |
LED interior lights, two small LED sidelights, two LED combination taillights | |
Retro Reflectors 10 | |
Auxiliary Fittings | Cupboard None |

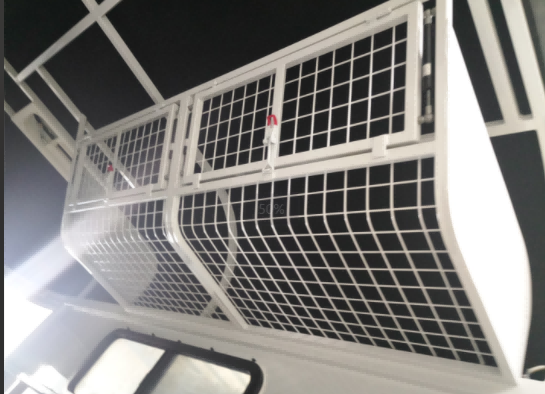

Horse Protection Frame fully padded | |
Horse Ring 6 | |
Saddle Rack in front cupboard | |
Rug Rack None | |
Saddle Box None | |
Dimensions | Body Dimension (L x W x H :mm): 3075 x1750 x 2230 |
Inner Dimension (L x W x H: mm): 3025 x 1700 x 2155 | |
Overall Dimension (L x W x H: mm): 3925 x 2290 x 2600 | |
Length of Tone (mm) 850 | |
Empty Weight | 1200 KGs |
Carrying Capacity | 1500 KGs |
