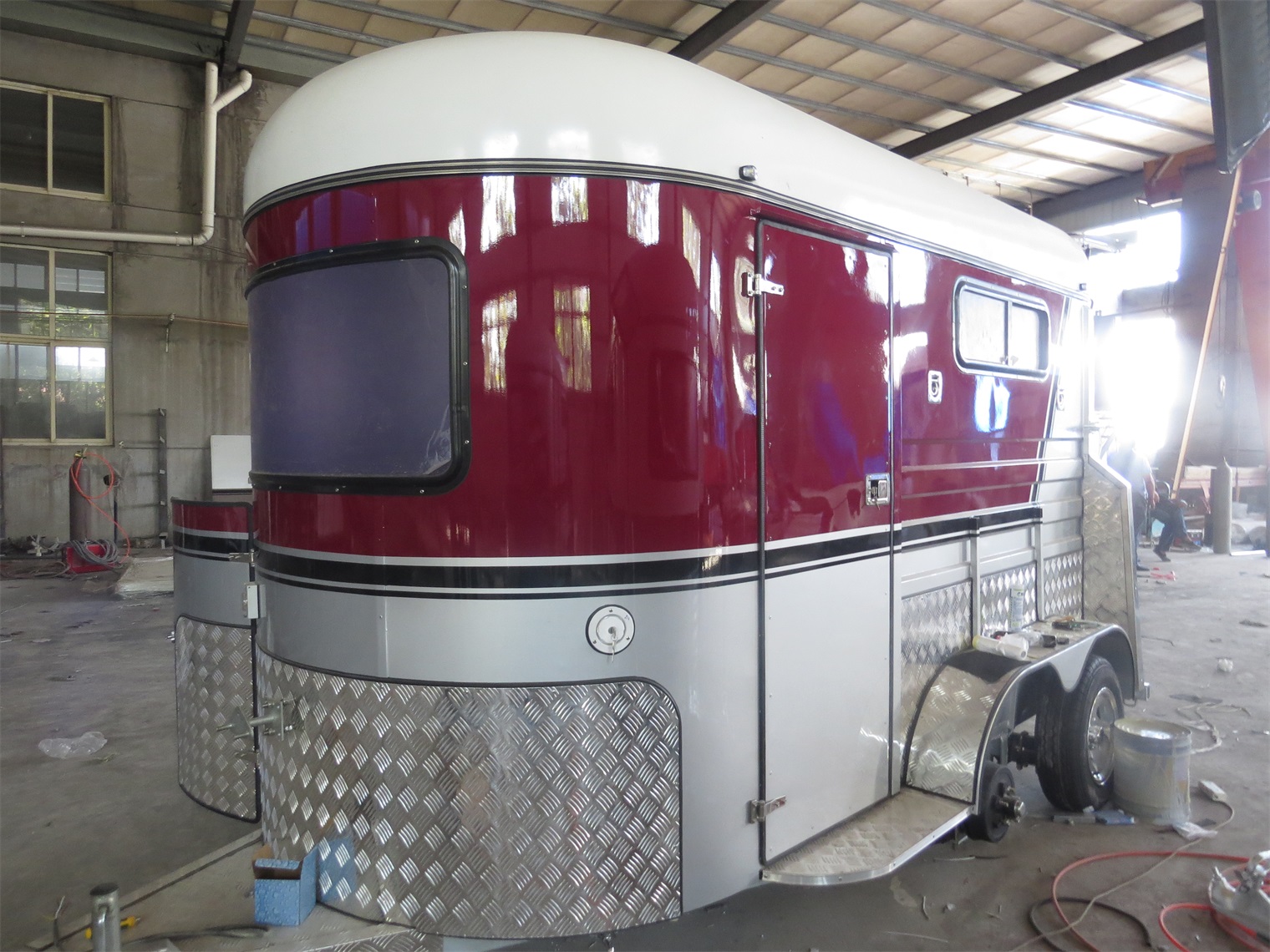

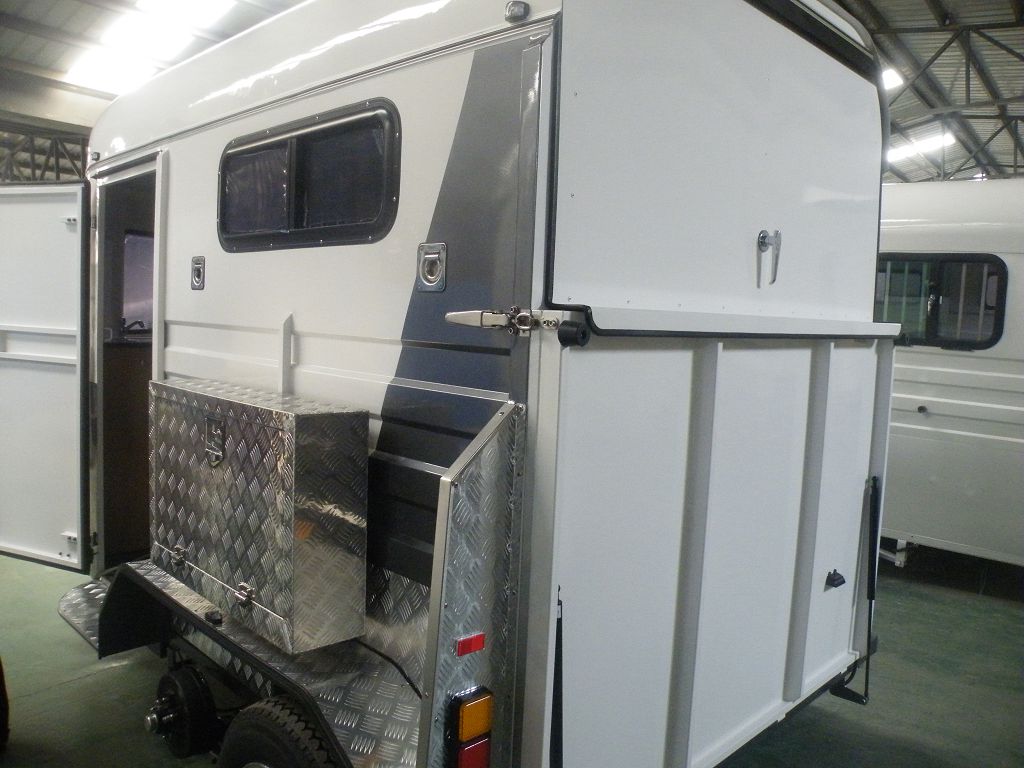

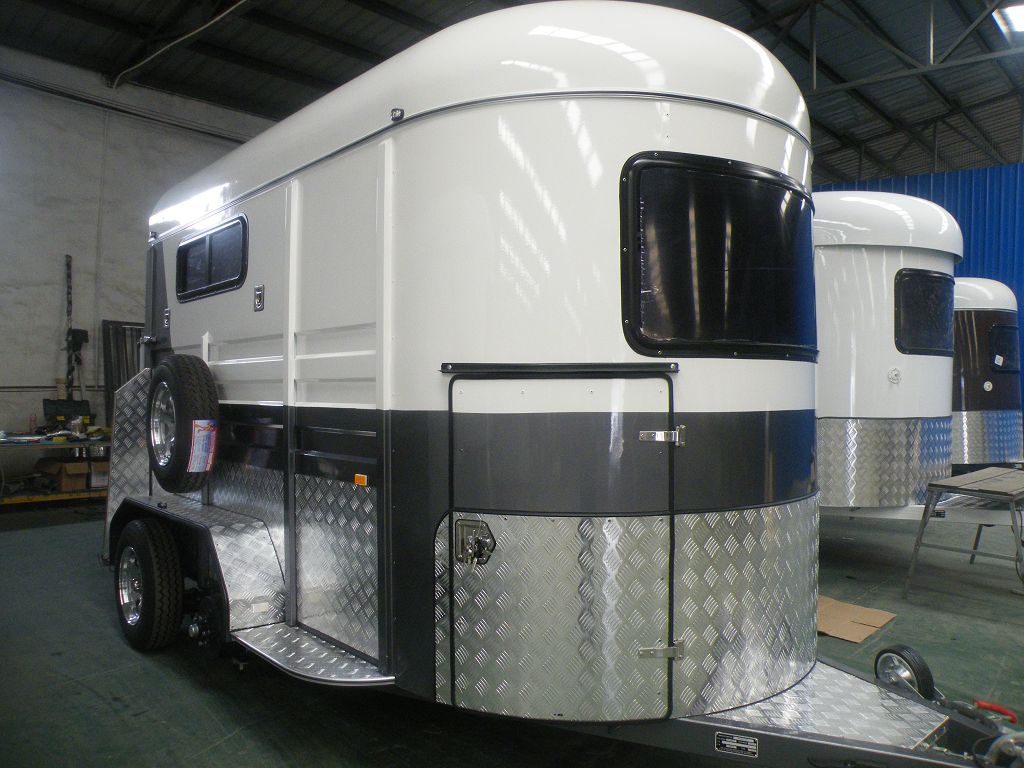

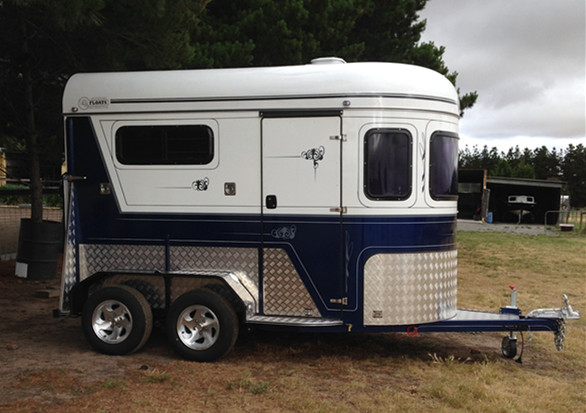

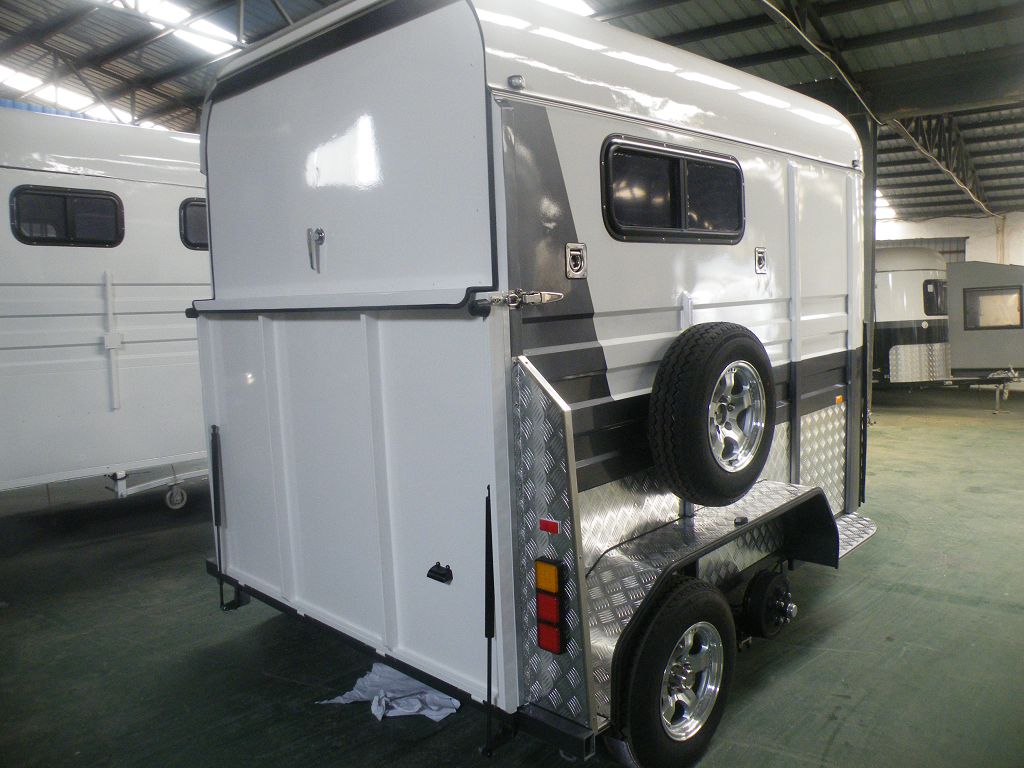

DeluxeType 2 Horses Straight LoadHorse Trailer
Our products include, but not limited to the following advantages:
1. The double hot dip galvanized chassis offers a 5-20 years guarantee against rusting in bad working condition (most factories use hot dip galvanized pipe welding. Although the steel doesn’t rust, the welding parts will. We choose the whole chassis galvanized after welding .
2. Different ATM will need different tyres . Three horse and more will choose 205R tyres which can keep transportation much safer also conform the ADRS.
3. 50*50 axles making the trailer more strong
4. 17.5mm ultra thick anti-slip rupper floor
5. Water tank including the level display, Show you the detailed information .
6. protection cover for gas struts in tailgate .
7. Gooseneck with big capacity adopts gas brake .
8. Beautiful style of closed front .
9. FRP roof is much tougher
10. Upgated U shape big horse ring is tougher and more convenient.
11. Button lock in the cupboard , practical and convenient .
12. Australian standard coded Trailer chain
13. The user instructions are provided
Deluxe type Horse float for 2 horses extended/lengthened horse float for 2 horses
Model | HR-2HSL-L400 |
Materials | Chassis Material: double hot dip galvanized RHS (3.5mm-4.0mm) |
Frame Material: double hot dip galvanized RHS (2.5mm) | |
Body Panel: galvanized sheet (1-1.5mm) | |
Roof: Special molded FRP 3mm | |
Brake | Perfect security structure design, double axle electric brakes |
Drawbar | Drawbar Checker Plate 1.2mm aluminium |
Drawbar Safety Chain two & Bracing Wheel one | |
Suspension | Roll rocker tandem spring 5plate |
Axles | Two special trailer axles 50*50mm |
Wheels & Tyre | Five 185R14C tyres and 14’ aluminum alloy rims including a spare wheel |
Rubber Matting | 18mm special plywood for floor& ramp door |
Rubber Matting For Inner Side Panel 6mm Rubber Matting | |
Rubber Matting For Floor & Ramp Door 17.5mm anti-slip rubber sheet | |
Windows Doors | Front Window (mm) 1220*610 |
Side Windows one on each side | |

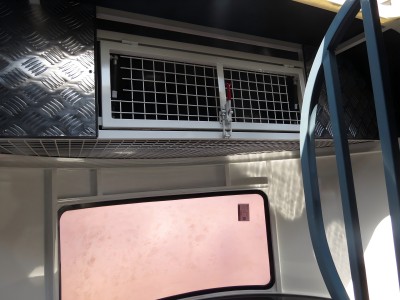

Vents two large size upturning ventilation windows | |
Rear Upper Door (mm) 1750*1065 Strut & High-intensity anti-rust strut | |
Ramp Door (mm) 1800*1210 | |
Side Door (mm) 1730*670 | |
Hinges for Rear Upper Door special 6mm diameter copper hinges | |
Supporting Wheel | Swing-able knight supporting wheels to make parking safe and reliable |
Lights& Petro Reflectors | Trailer Plug Seven-prongs Plug |
Rear Lights brackets aluminium | |
LED interior lights, two small LED sidelights, two LED combination taillights | |
Retro Reflectors 10 | |

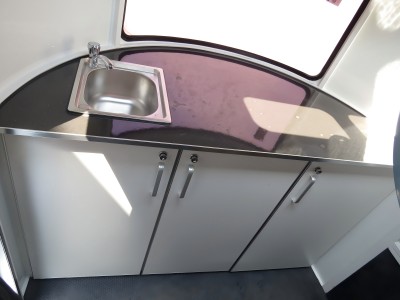

Auxiliary Fittings | Cupboard optional |
Horse Protection Frame fully padded | |
Horse Ring 6 | |
Saddle Rack in front cupboard | |
Rug Rack Front | |
Saddle box None | |
Dimensions | Body Dimension (L x W x H :mm) : 3475 x1750 x 2230 |
Inner Dimension (L x W x H:mm) : 3425 x 1700 x 2155 | |
Overall Dimension(L x W x H :mm): 4325x2290x2600 | |
Length of Tone (mm) 850 | |
Empty Weight | 1380 KGs |
Max Payload | 1800 KGs |
Model | HR-2HSL-L600 |
Materials | Chassis Material: double hot dip galvanized RHS (3.5mm-4.0mm) |
Frame Material: double hot dip galvanized RHS (2.5mm) | |
Body Panel: galvanized sheet (1-1.5mm) | |
Roof: Special molded FRP 3mm | |
Brake | Perfect security structure design, double axle electric brakes |
Drawbar | Drawbar Checker Plate 1.2mm aluminium |
Drawbar Safety Chain two & Bracing Wheel one | |
Suspension | Roll rocker tandem spring 7 plate |
Axles | Two special trailer axles 50*50mm |
Wheels & Tyre | Five 185R14C tyres and 14’ aluminum alloy rims including a spare wheel |
Rubber Matting | 18mm special plywood for floor& ramp door |
Rubber Matting For Inner Side Panel 6mm Rubber Matting | |
Rubber Matting For Floor & Ramp Door 17.5mm anti-slip rubber sheet | |
Windows Doors | Front Window (mm) 1220*610 |
Side Windows one on each side | |
Vents two large size upturning ventilation windows | |
Rear Upper Door (mm) 1750*1065 Strut & High-intensity anti-rust strut | |
Ramp Door (mm) 1800*1210 | |
Side Door (mm) 1730*670 | |
Hinges for Rear Upper Door special 6mm diameter copper hinges | |
Supporting Wheel | Swing-able knight supporting wheels to make parking safe and reliable |
Lights& Petro Reflectors | Trailer Plug Seven-prongs Plug |
Rear Lights brackets aluminium | |
LED interior lights, two small LED sidelights, two LED combination taillights | |
Retro Reflectors 10 | |
Auxiliary Fittings | Cupboard optional |
Horse Protection Frame fully padded | |
Horse Ring 6 | |
Saddle Rack in front cupboard | |
Rug Rack Front | |
Saddle box None | |
Dimensions | Body Dimension (L x W x H :mm) : 3675 x1750 x 2230 |
Inner Dimension (L x W x H:mm) : 3625 x 1700 x 2155 | |
Overall Dimension(L x W x H :mm): 4525x2290x2600 | |
Length of Tone (mm) 850 | |
Empty Weight | 1580 KGs |
Max Payload | 1800 KGs |

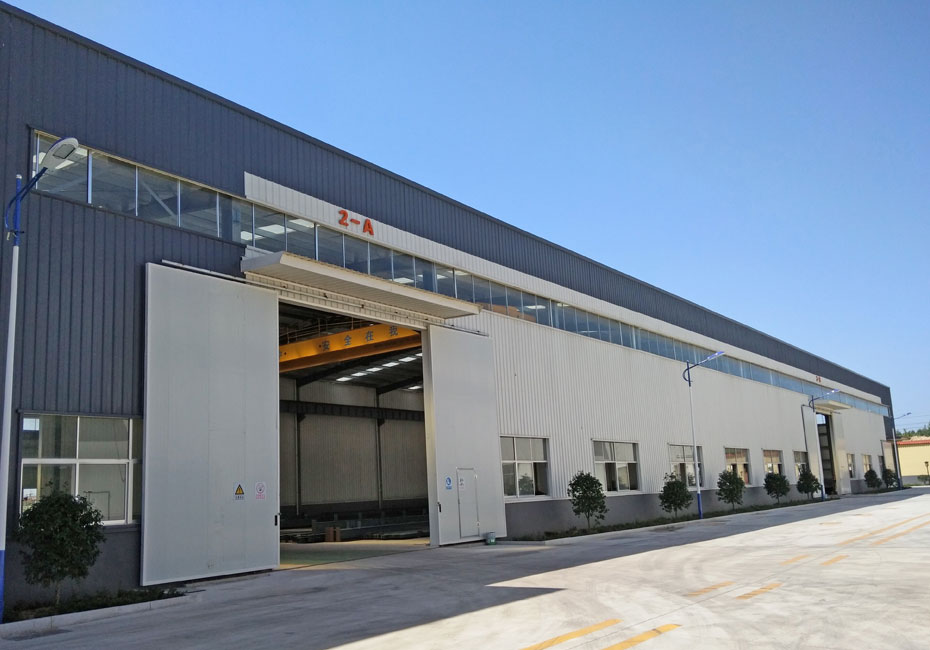

As one of the leading horse trailer manufacturer in China , with many years of experiences in production. We are familiar with every type of horse trailer in Australia and we can produce customized horse trailers as per your request.
As we are a manufacturer, we can furnish trailers of high quality to you at the best price. We believe that we will be your best partner in China!
Quality assurance
Based on our confidence on the quality of products, we can make promises as follows:
Product warranty
1 chassis: 5-10 years guarantee against rusting and cracking.
2 roof : 5-years guarantee against rusting and cracking
3 body frame: 5-years guarantee against rusting and cracking
4 axles: 5-years guarantee against rusting and cracking
5 paint: 1-years guarantee against rusting and cracking
6 fittings: (rug rack、saddle box、 tool box、 horse fence) 3- years guarantee against rusting and cracking
