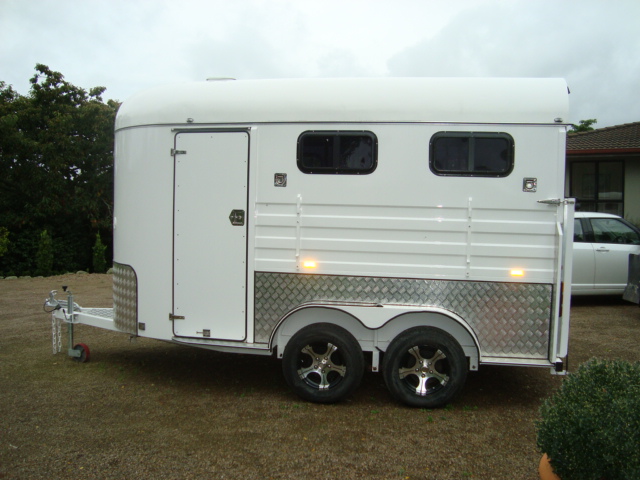

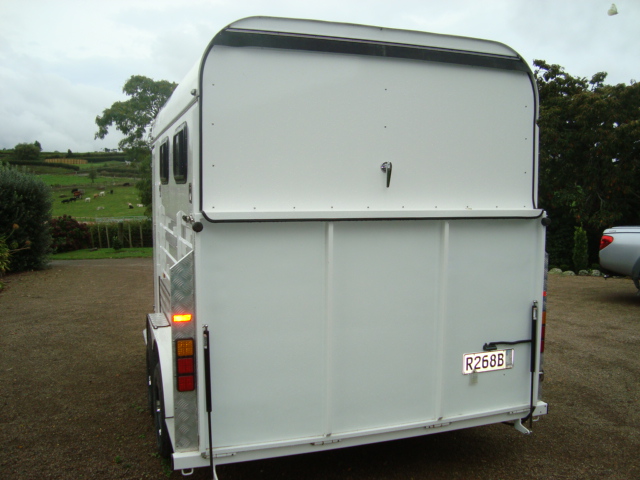

Deluxe Type 2 Horses Angle Load Horse Trailer
Our products include, but not limited to the following advantages:
1. The double hot dip galvanized chassis offers a 5-20 years guarantee against rusting in bad working condition (most factories use hot dip galvanized pipe welding. Although the steel doesn’t rust, the welding parts will. We choose the whole chassis galvanized after welding .
2. Different ATM will need different tyres . Three horse and more will choose 205R tyres which can keep transportation much safer also conform the ADRS.
3. 50*50 axles making the trailer more strong
4. 17.5mm ultra thick anti-slip rupper floor

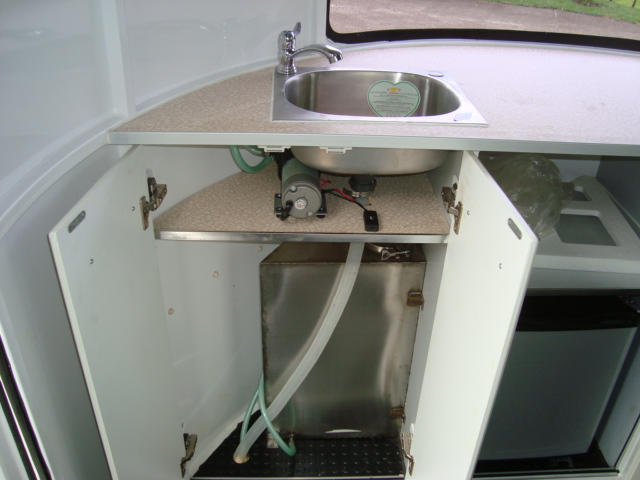

5. Water tank including the level display, Show you the detailed information .
6. protection cover for gas struts in tailgate .
7. Gooseneck with big capacity adopts gas brake .
8. Beautiful style of closed front .
9. FRP roof is much tougher
10. Upgated U shape big horse ring is tougher and more convenient.
11. Button lock in the cupboard , practical and convenient .
12. Australian standard coded Trailer chain
The Deluxe Type 2 Horses Angle Load Horse Trailer is a top-of-the-line transportation option for horse enthusiasts. Specially designed to accommodate two horses, it offers a luxurious and comfortable ride. The angle load configuration makes loading and unloading effortless and safe, reducing stress on the animals. Constructed with premium materials, it is both durable and stylish. The trailer features excellent ventilation and spacious compartments to ensure the well-being of the horses during transit. Ideal for competitions, shows, or long trips, it is a must-have for those who demand the best for their equine companions.
Model | HR-2HAL-L860 |
Materials | Chassis Material: double hot dip galvanized RHS (3.5mm-4.0mm) |
Frame Material: double hot dip galvanized RHS (2.5mm) | |
Body Panel: galvanized sheet (1-1.5mm) | |
Roof: Special molded FRP | |
Brake | Perfect security structure design, double axle electric brakes |
Drawbar | Drawbar Checker Plate 1.2mm aluminium |
Drawbar Safety Chain two & Bracing Wheel one | |
Suspension | Roll rocker tandem spring 7 plate |
Axles | Two special trailer axles 50*50 |
Wheels & Tyre Rubber Matting | Five 185R14 tyres and 14' aluminum alloy rims including a spare wheel |
Rubber Matting | 18mm special plywood for floor& ramp door |
Rubber Matting For Inner Side Panel 6mm Rubber Matting | |
Rubber Matting For Floor & Ramp Door 17.5 mm anti-slip rubber sheet | |
Windows& Doors | Front Window (mm) 1220*610 |

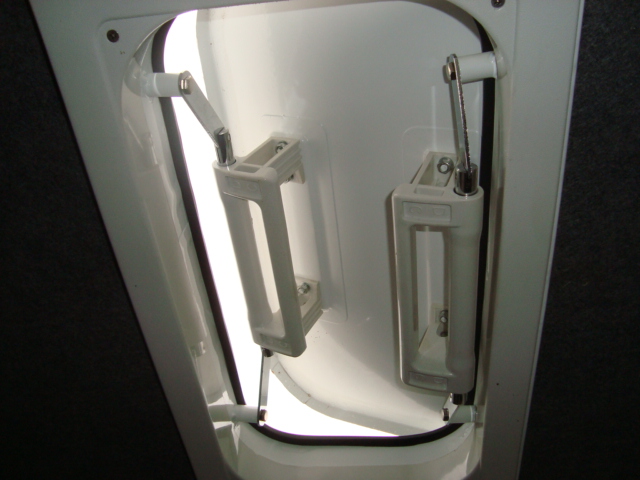

Side Sash Windows 600mm*400mm*4 | |

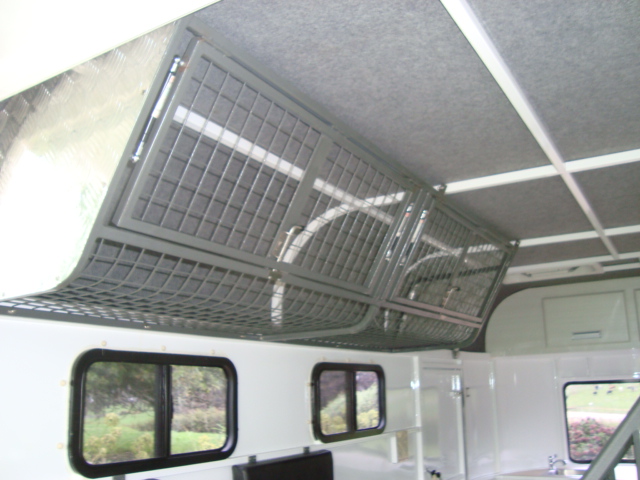

Skylight two large size upturning ventilation windows | |

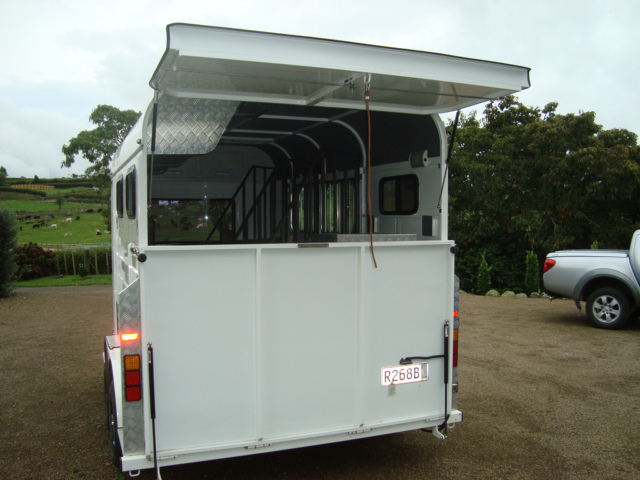

Rear Upper Door (mm)1980*1065 Strut & High-intensity anti-rust strut | |

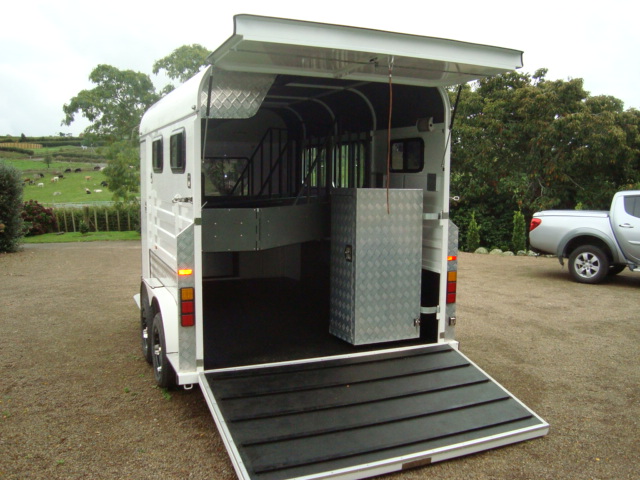

Ramp Door (mm) 2030*1210 | |
Side Door (mm) 1730*615 | |
Hinges for Rear Upper Door special 6mm diameter copper hinges | |
Supporting Wheel | Swing-able knight supporting wheels to make parking safe and reliable |
Lights& Petro Reflectors | Trailer Plug Seven-prongs Plug |
Rear Lights brackets aluminium | |
LED interior lights, two small LED sidelights, two LED combination taillights | |
Retro Reflectors 8 | |

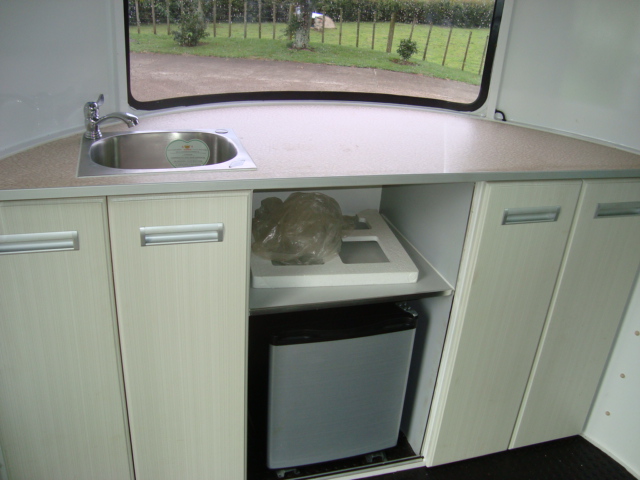

Auxiliary Fittings | Cupboard Front |

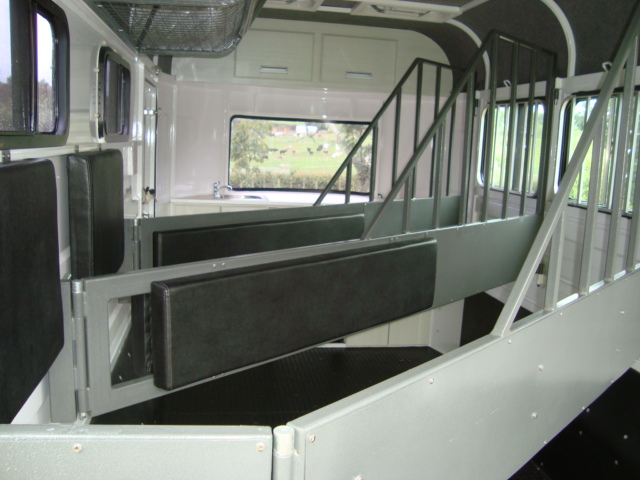

Horse Protection Frame fully padded | |
Horse Ring Four | |
Saddle Rack in saddle box(1200mm height for 2 saddles) | |
Rug Rack Side | |
Saddle Box One | |
Dimensions | Body Dimension (L x W x H: mm) : 4120 x 1980 x 2230 |
Inner Dimension (L x W x H: mm) : 4070 x 1930 x 2155 | |
Overall Dimension(L x W x H: mm): 4970 x 2290 x 2600 | |
Length of Tone (mm): 850 | |
Empty Weight | 1500 KGs |
Carrying capacity | 1800 KGs |
our company is a professional manufacturer of horse float, gooseneck ,mobile food trailer and other trailers. All our floats are manufactured fully according to Australian Standards (ADRs), the quality and safety is the best for you and your horses.
Advantage
Our merchandise include, however now not confined to the following advantages:
1. The double warm dip galvanized chassis affords a 5-20 years assurance in opposition to rusting in terrible working circumstance (most factories use warm dip galvanized pipe welding. Although the metal doesn’t rust, the welding components will. We pick the total chassis galvanized after welding .
2. Different ATM will need one of a kind tyres . Three horse and extra will select 205R tyres which can hold transportation a good deal safer additionally conform the ADRS.
3. 50*50 axles making the trailer greater sturdy
4. 17.5mm extremely thick anti-slip rupper flooring
5. Water tank which includes the degree display, Show you the precise records .
6. safety cowl for fuel struts in tailgate .
7. Gooseneck with large capability adopts fuel brake .
8. Beautiful fashion of closed the front .
9. FRP roof is an awful lot more difficult
10. Upgated U form huge horse ring is more difficult and greater convenient.
11. Button lock in the cabinet , realistic and convenient .
12. Australian preferred coded Trailer chain
