Tradesman Trailer
1. Durability: Adopting high-strength materials and sturdy construction, the Tradesman Trailer can withstand a variety of job site environments, ensuring that it will not be easily damaged by long-term use.
2. Flexibility: Its multi-functional design allows for easy storage and transportation of various tools and equipment to meet the needs of different jobs and enhance work efficiency.
3. Safety: Equipped with safety locks and anti-theft design, it ensures the safety of tools and equipment during transportation and storage, reducing the risk of loss.
4.Easy To operate: Intuitive design makes the trailer easy and convenient to connect and operate, suitable for all kinds of vehicles, saving time and energy.
5. Extra storage space: a variety of storage solutions provide extra storage space, allowing users to better organize and manage tools and materials.
6. Affordability: Compared to other transportation solutions, the Tradesman Trailer excels in cost-effectiveness, helping professionals save money.
1.The Tradesman Trailer's storage features are as follows
2x smaller compartments underneath the main compartment area on Left 450w x 450L x 450H
The main compartment area on either side is 1700 in width x 1950 length x 820 in depth.
2x smaller compartments underneath the main compartment area on right 450w x 450L x 450H
Fridge slide out -70 Litres with Fan
Additional Compartment above the fridge slide out – 1100 width x 600 length x 200 Depth.

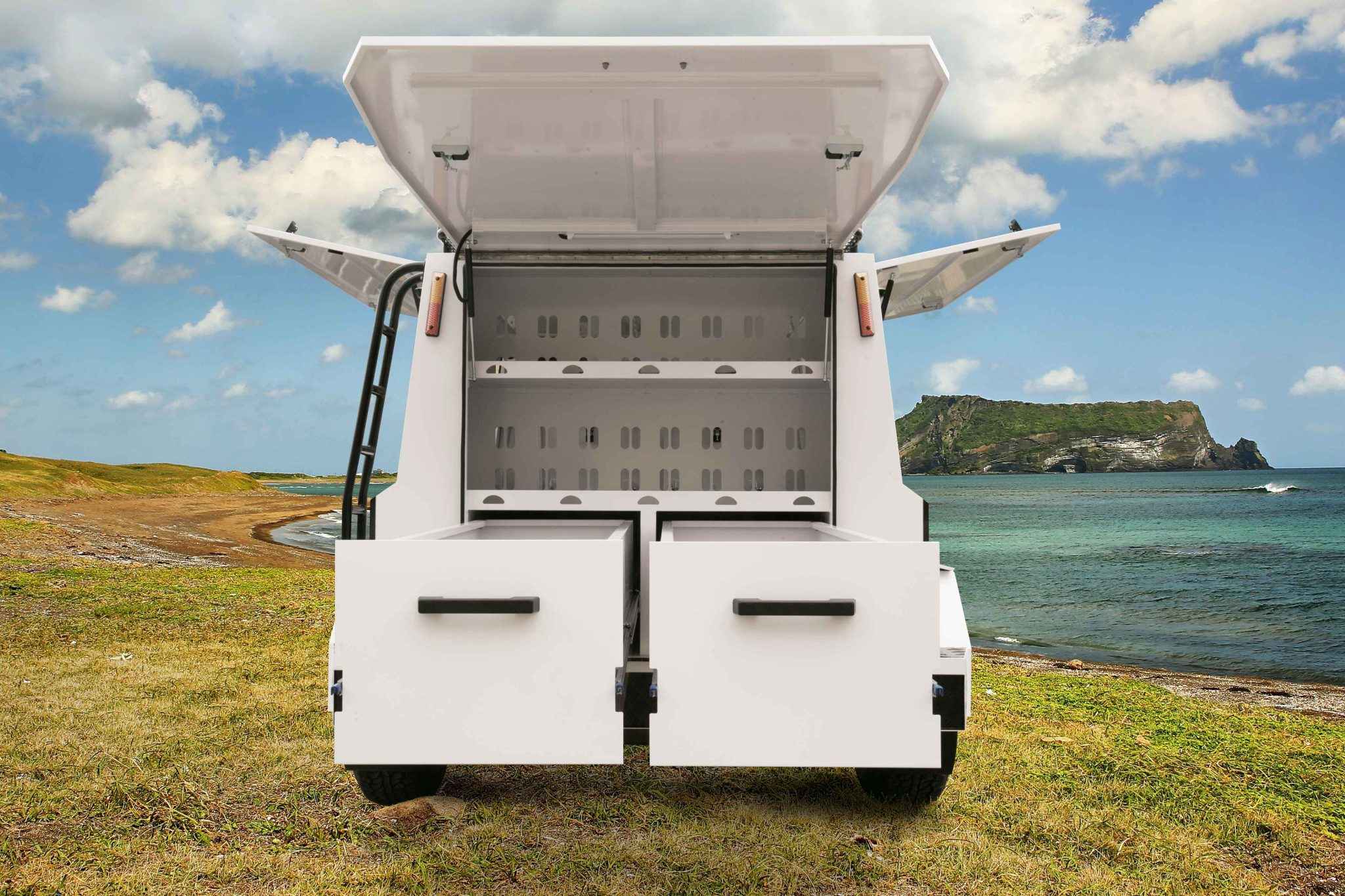

2 x shelves located at the rear
Bottom shelves – 600 width x 450 length x 420 height
Top shelve – 600 width x 450 length x 380 height.
2 x slide-out pull-out drawers located at rear – 500 width x 1800 length x 400 height.
Draws Have Latches on the side to open and close.
2.Additional storage compartments
Right side
Longest point- 450 length x 700 width x 810 height.
Lowest point – 340 length x 700 width x 810 height.
Left side
Longest point- 450 length x 700 width x 810 height.
Lowest point – 340 length x 700 width x 810 height.
Internal fans were found in front of the wheel holder behind the fridge.
3.Body specs & Features
a.Body specs
Model:TT85
Tare:1600
Aggregate Trailer mass:3500
Gross Trailer Mass:2200
Recom Tyre Size:235/75R15
Cold Inflation Pressure:300
Axle Group Loading:3600
b.Features
(1)Powder coated White External
(2)Powder coated White Internal

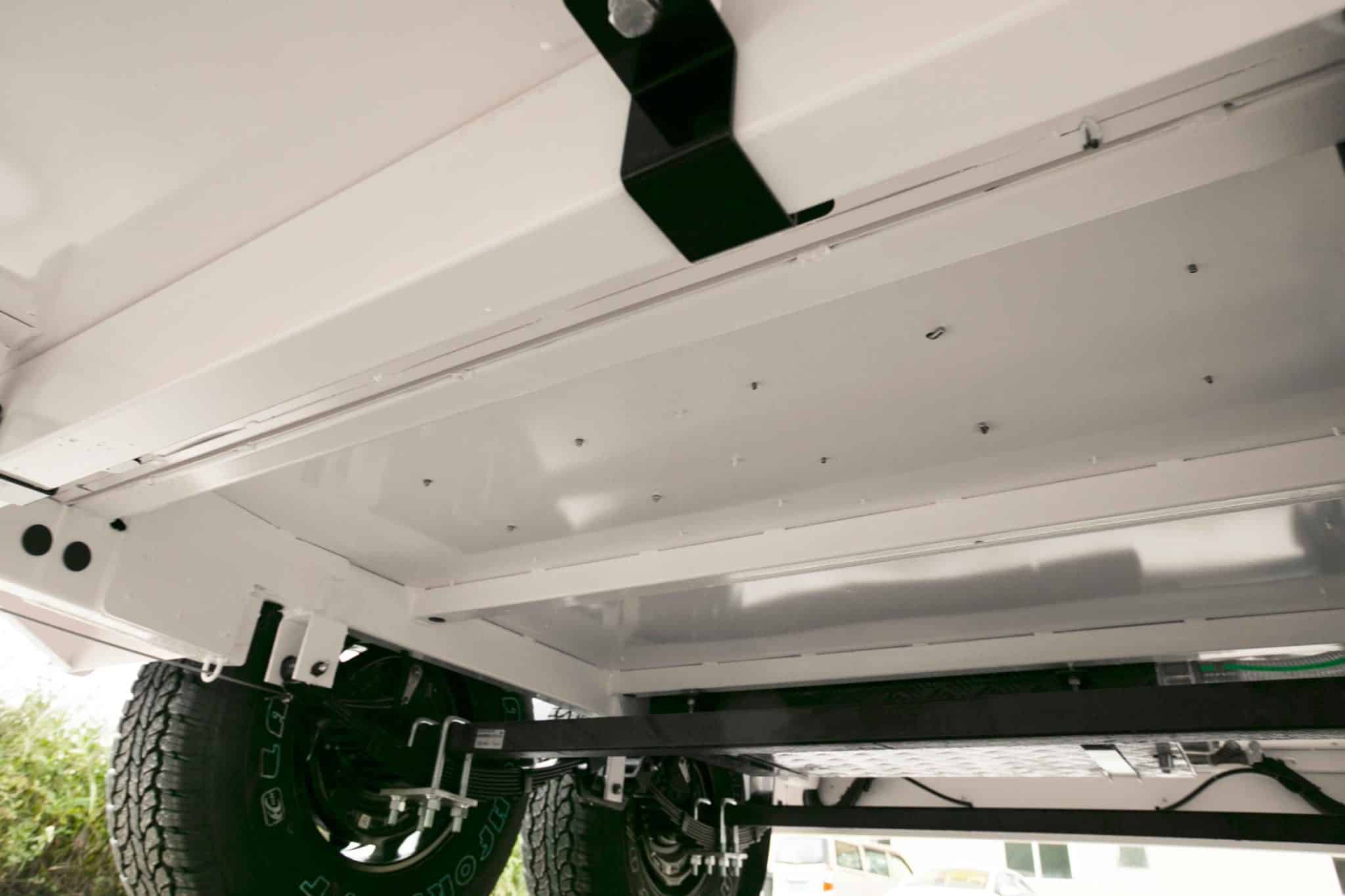

(3)Heavy duty chassis 50 x 95
(4)Heavy duty Jockey leg located on the right-hand side
(5)Power outlets, 2 speaker radios
(6)convertor found within the main compartment.
(7)Dual Battery
(8)2 x Remote Alarm
(9)2 Anderson plugs, external sockets, power button.
(10)Water gauge indicating levels found within the compartment.
(11)Water tank runs inside the chassis and sits on the left-hand side.
(12)2 x Stainless steel 100L Dual water tank filler found underneath
(13)Hose runs inside chassis where you can open the tap.
(14)water Pump fitted
(15)Gauge is inside indicating whether empty or not.
(16)Black ladder rack located at the front with a spare tyre.
(17)2 x Solar panel slide outs located underneath the roof cage.
(18)Fridge slide out with Fan
(19)Compression press release locks on all doors
(20)Gas struts for all doors
(21)Black checker plate finish for all step on areas
(22)Double king tyres and Off rise series GR wheels.
(23)Tyres 256 75R 16 Inch wheels
(24)Spare Tyre Included sits at Front
(25)Dual axel to assist in carrying more weight and stability
(26)Ladder rack located at rear 1300 height

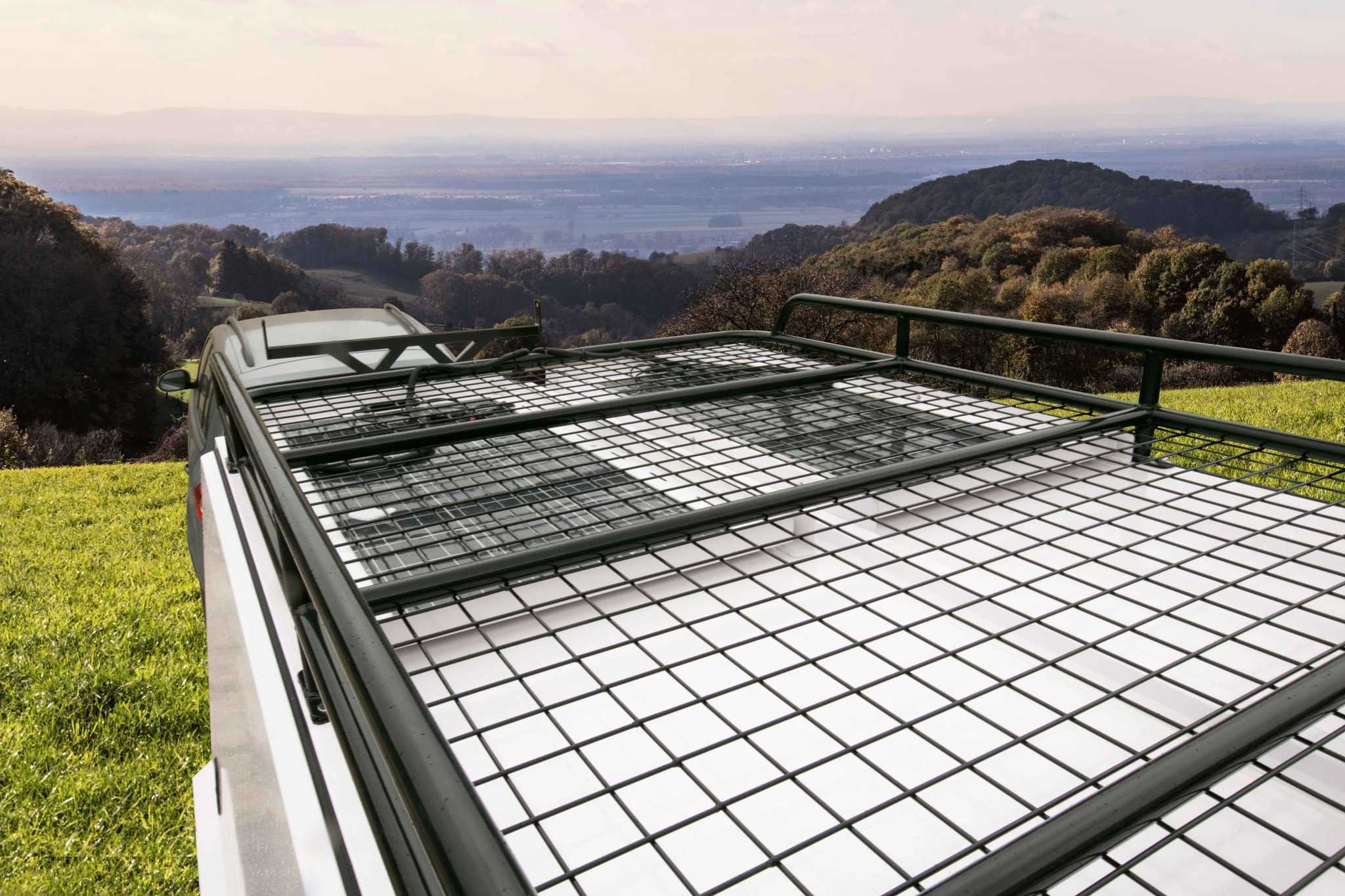

(27)Roof Luggage Carrier powder coated Black Included
(28)Brake, parker, reverse and number plate lights with a black checker plate finish.
