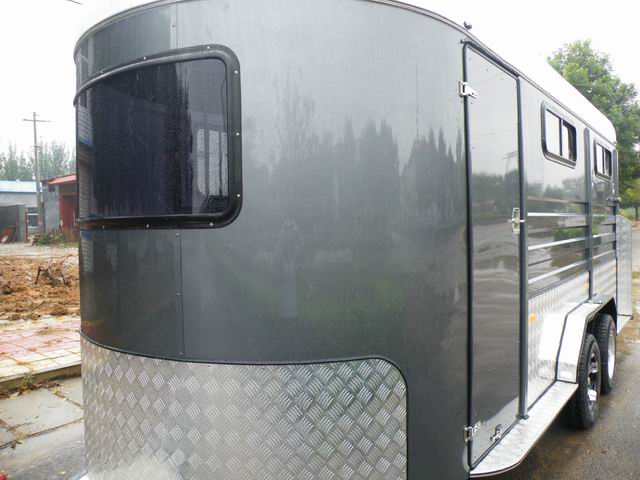

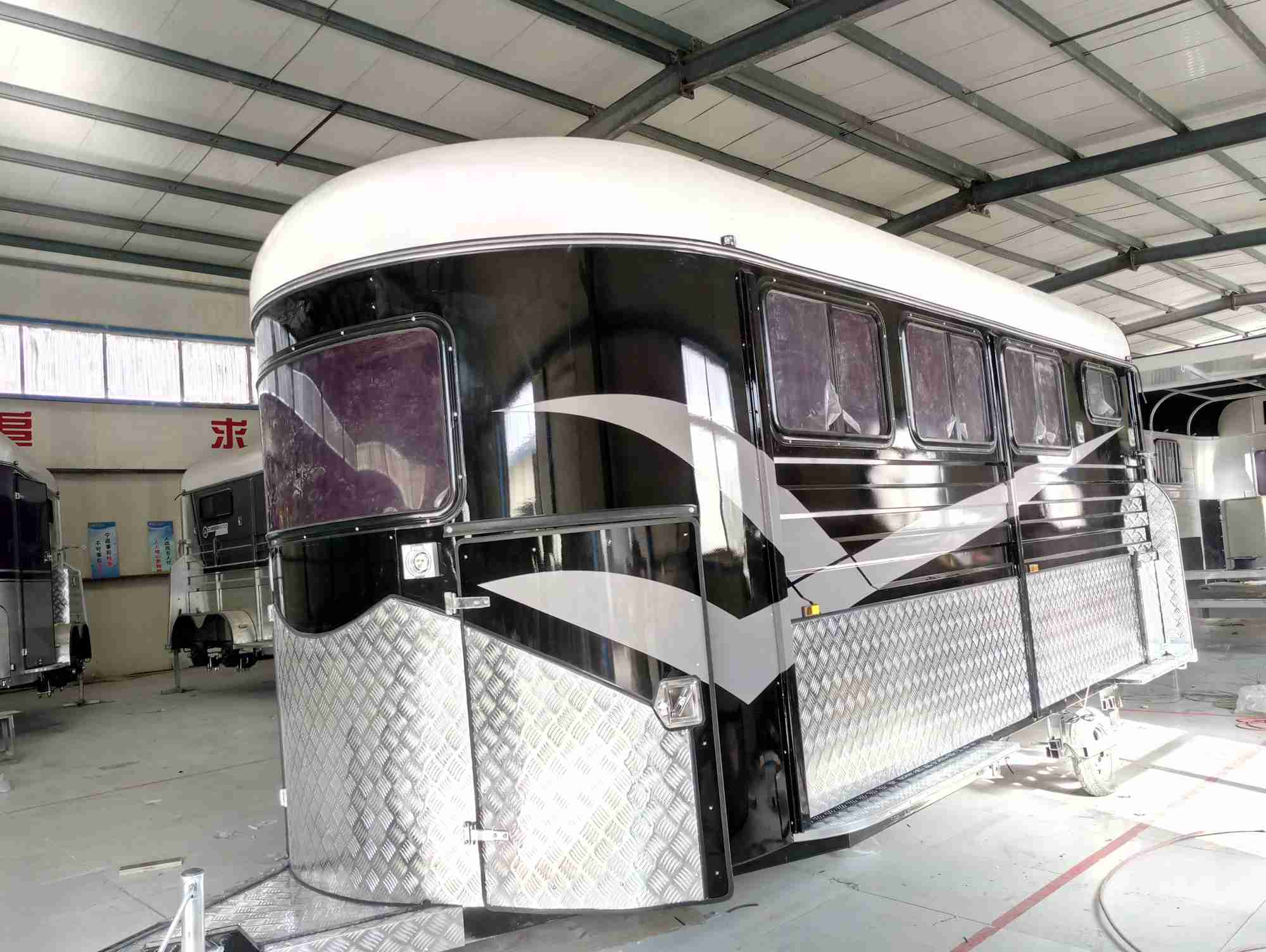

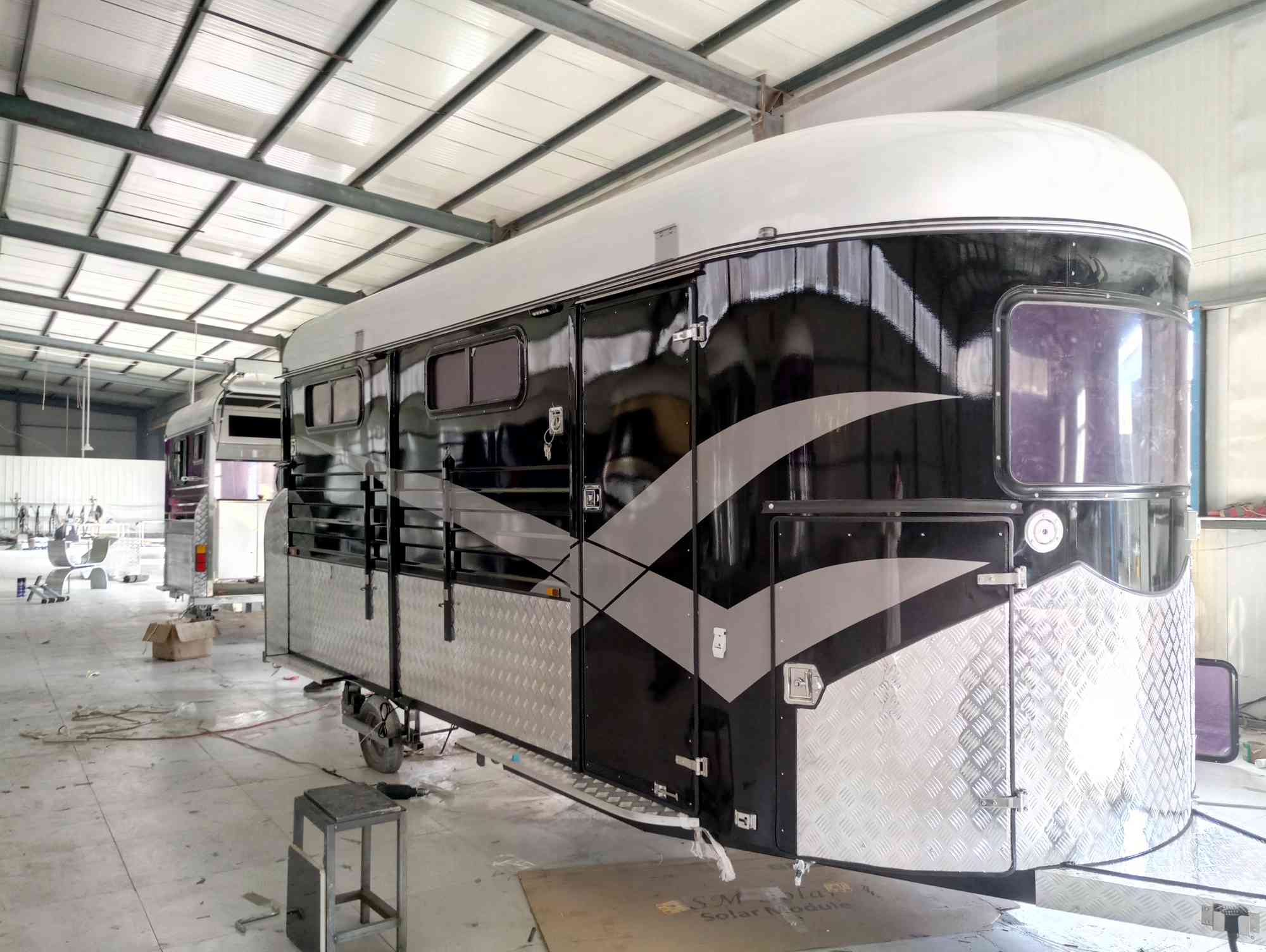

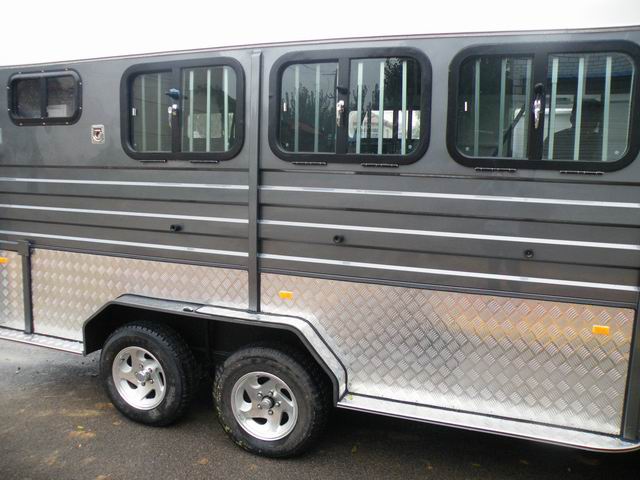

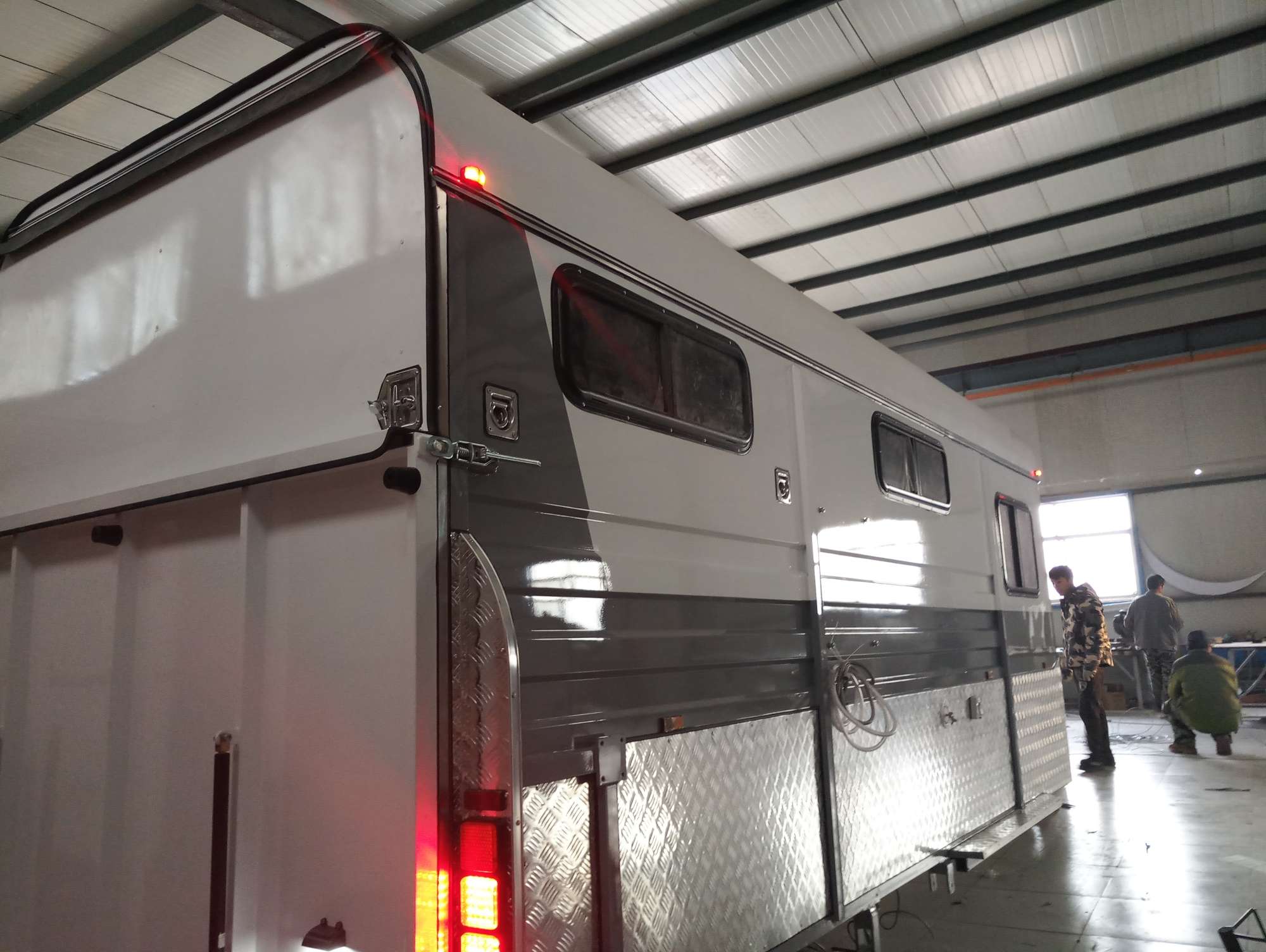

Deluxe Type Horse Float for 3 Horses

1. Spacious Design: Ample space for horse comfort and movement.

2. High-Quality Materials: Durable and lightweight for safety and longevity.

3. Good Ventilation: Multiple vents maintain airflow and reduce anxiety.

4. Easy to Operate: Convenient entry/exit doors for quick loading/unloading.

5. Strong Stability: Designed chassis and suspension for smooth travel.

6. Safety Features: Safety belts and guard rails ensure secure transport.

7. Multifunctional: Suitable for competitions, travel, and training.

Contact Now E-Mail Telephone

Product Details

The Deluxe Three Horse Carriage is a high-end transportation solution designed for horse owners and equestrian enthusiasts. It offers spaciousness and can comfortably accommodate three horses, ensuring they have plenty of freedom of movement during transportation. The wagon is made of durable and lightweight high-quality materials for excellent safety and durability.

The wagon is designed with ventilation in mind and is equipped with multiple vents to effectively maintain air circulation and reduce anxiety for the horses. Convenient entry and exit doors make loading and unloading easier, while the well-designed chassis and suspension system ensure driving stability and comfort. In addition, safety features such as harnesses and guard rails provide extra protection to ensure the horse's safety during transportation. Whether it is used for competitions, traveling or training, this luxury carriage meets different needs, making it an ideal choice for horse owners.

1.The product parameters are as follows

Model	HR-3HAL-L500
Materials	Chassis Material: double hot dip galvanized RHS (3.5mm-4.0mm)
	Frame Material: double hot dip galvanized RHS (2.5mm)
	Body Panel: galvanized sheet (1-1.5mm)
	Roof: Special molded FRP 3mm
Brake	double axle electric brakes
Drawbar	Drawbar Checker Plate 1.2mm aluminium
	Drawbar Safety Chain two & Bracing Wheel one
Suspension	Roll rocker tandem spring 8 plate
Axles	Two special trailer axles 50*50mm
Wheels & Tyre	Five 205R14 tyres and 14’ aluminum alloy rims including a spare wheel
Rubber Matting	18mm special plywood for floor& ramp door

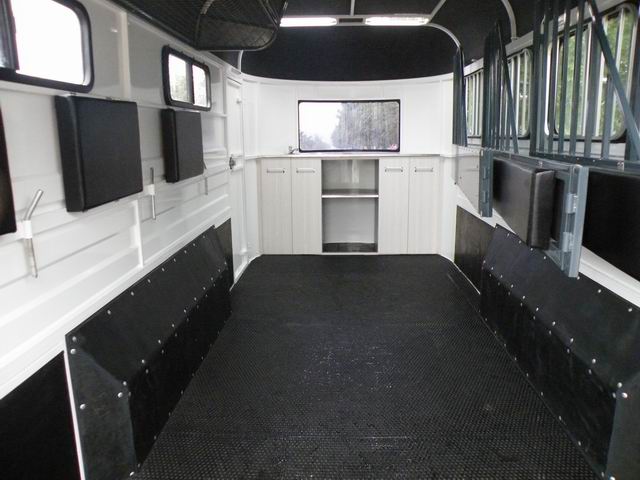

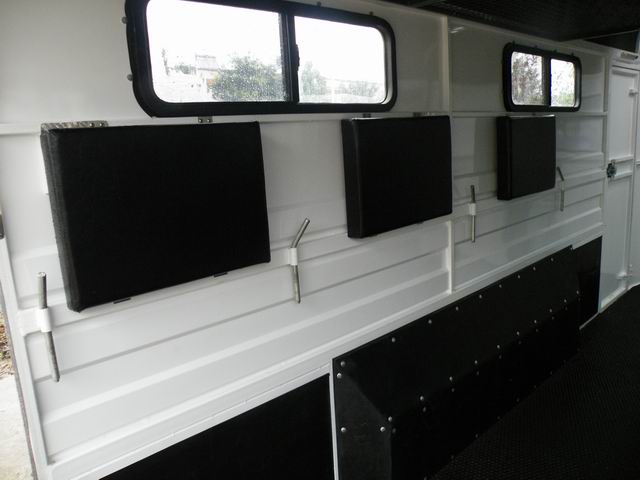

	Rubber Matting For Inner Side Panel 6mm Rubber Matting
	Rubber Matting For Floor & Ramp Door 17.5mm anti-slip rubber sheet
Windows& Doors	Front Window (mm) 1220*610mm

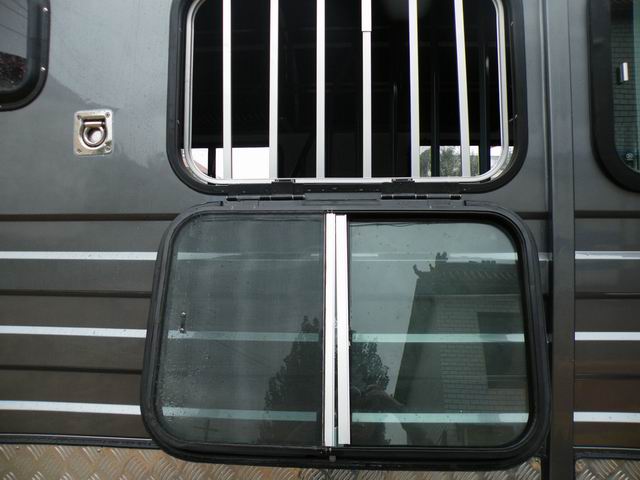

	Side Windows 6 Drop-down windows 3

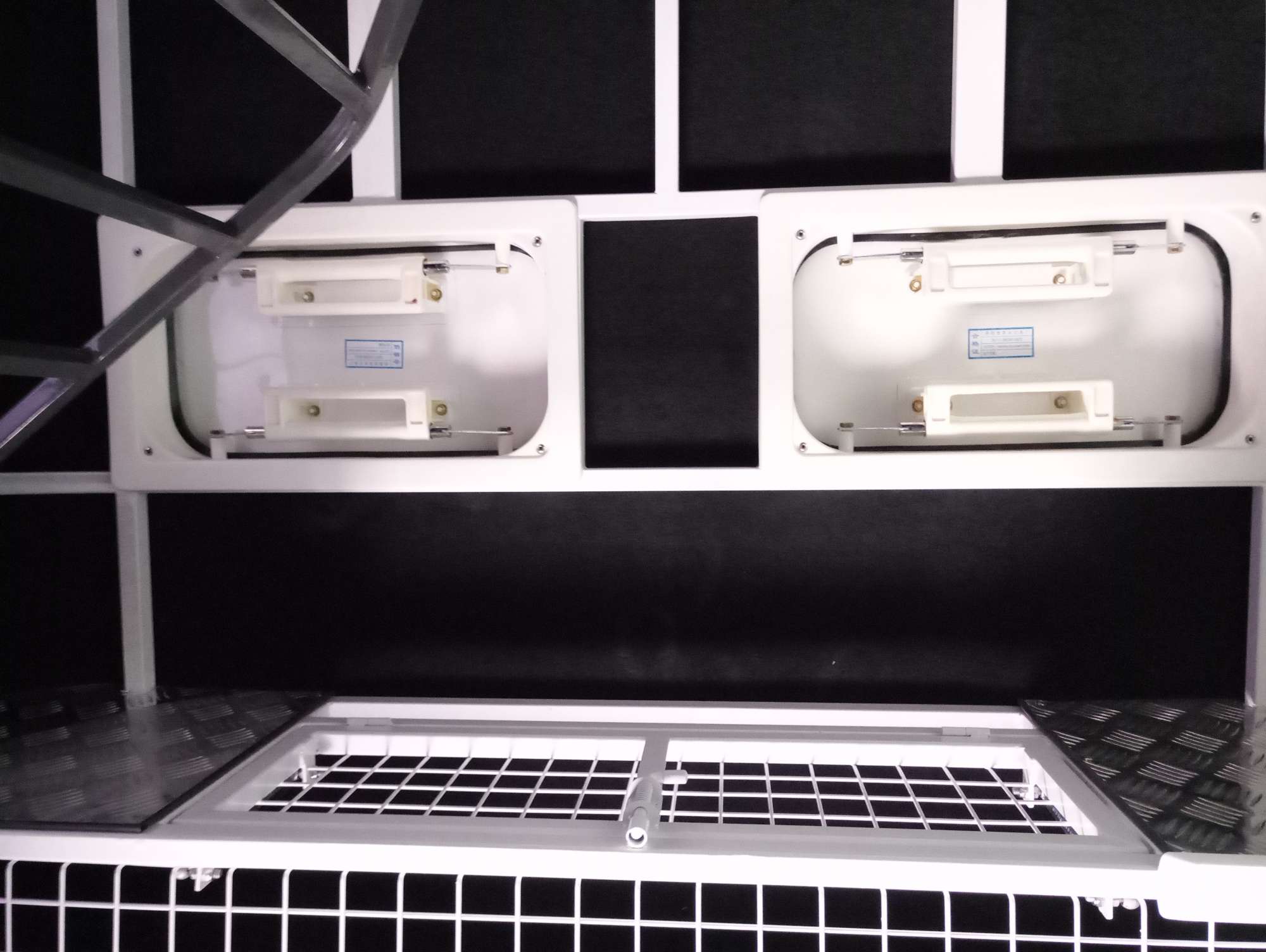

	Vents two large size upturning ventilation windows
	Rear Upper Door (mm) 1980*1065 Strut & High-intensity anti-rust strut
	Ramp Door (mm) 2030*1210
	Side Door (mm) 1730*615
	Hinges for Rear Upper Door special 6mm diameter copper hinges
Supporting Wheel	Swing-able knight supporting wheels to make parking safe and reliable
Lights& Petro Reflectors	Trailer Plug Seven-prongs plug
	Rear Lights brackets aluminium
	LED interior lights, two small LED sidelights, two LED combination taillights
	Retro Reflectors 8
Auxiliary Fittings	Cupboard Front optional

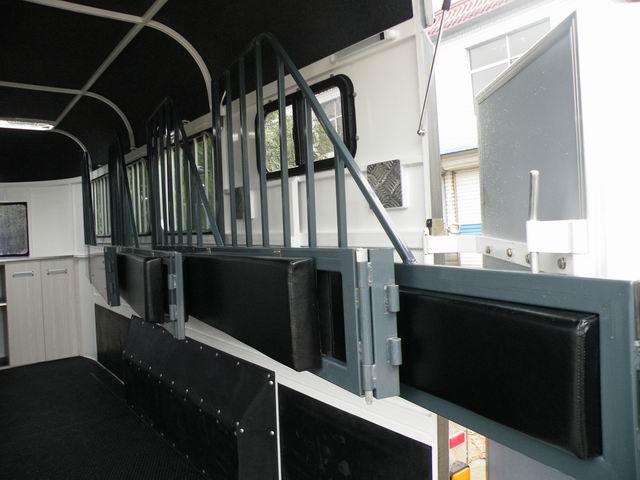

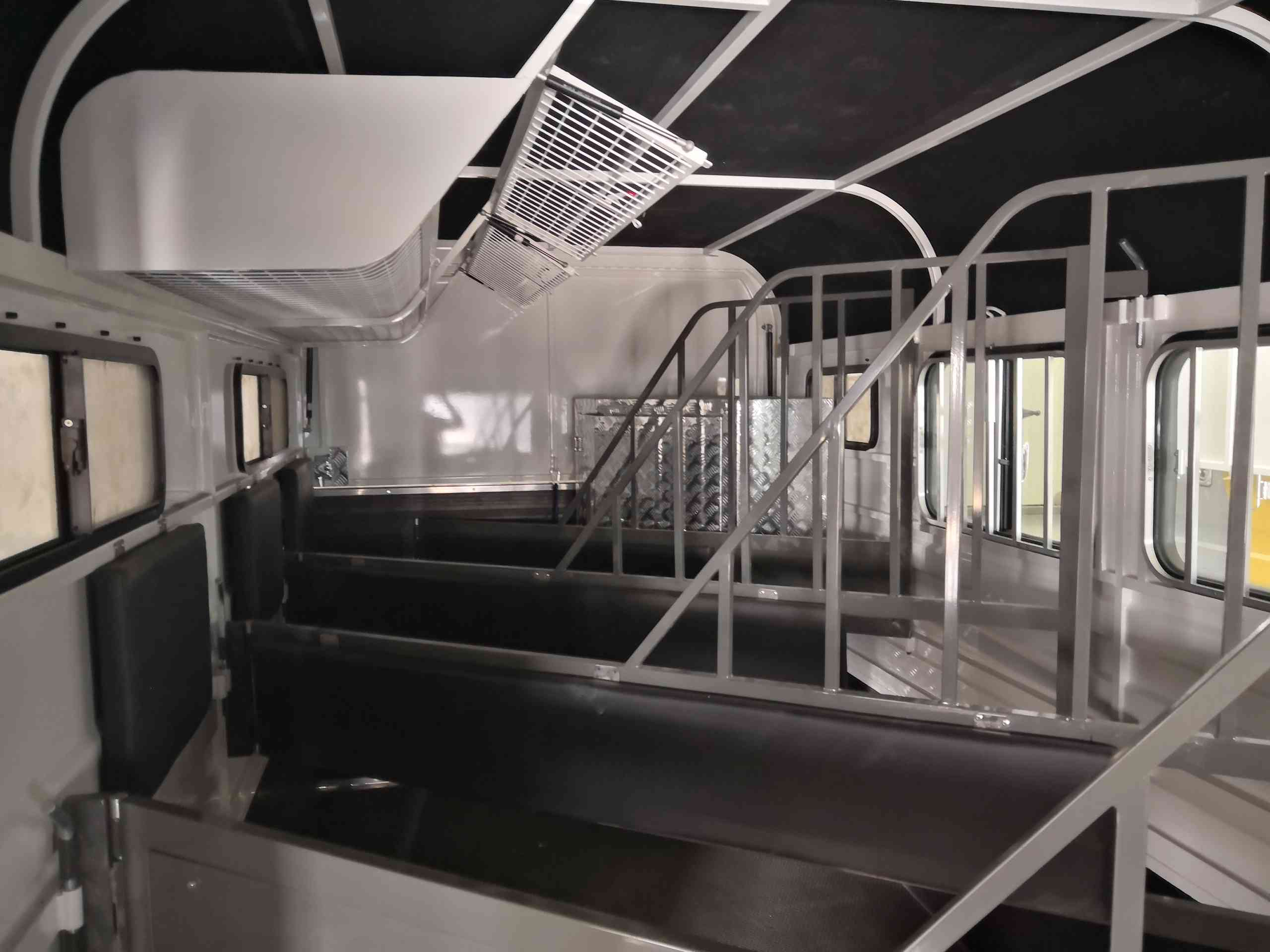

	Horse Protection Frame fully padded
	Horse Ring 7
	Saddle Rack in saddle box(1200mm height for 3 saddles)
	Rug Rack Side
	Saddle Box One
Dimensions	Body Dimension (L x W x H: mm) : 5075 x 1980 x 2230
	Inner Dimension (L x W x H: mm) : 5025 x 1930 x 2155
	Overall Dimension (L x W x H: mm): 5925 x 2290 x 2600
	Length of Tone (mm): 850
Empty Weight	1900 KGs
Carrying Capacity	2500 KGs
