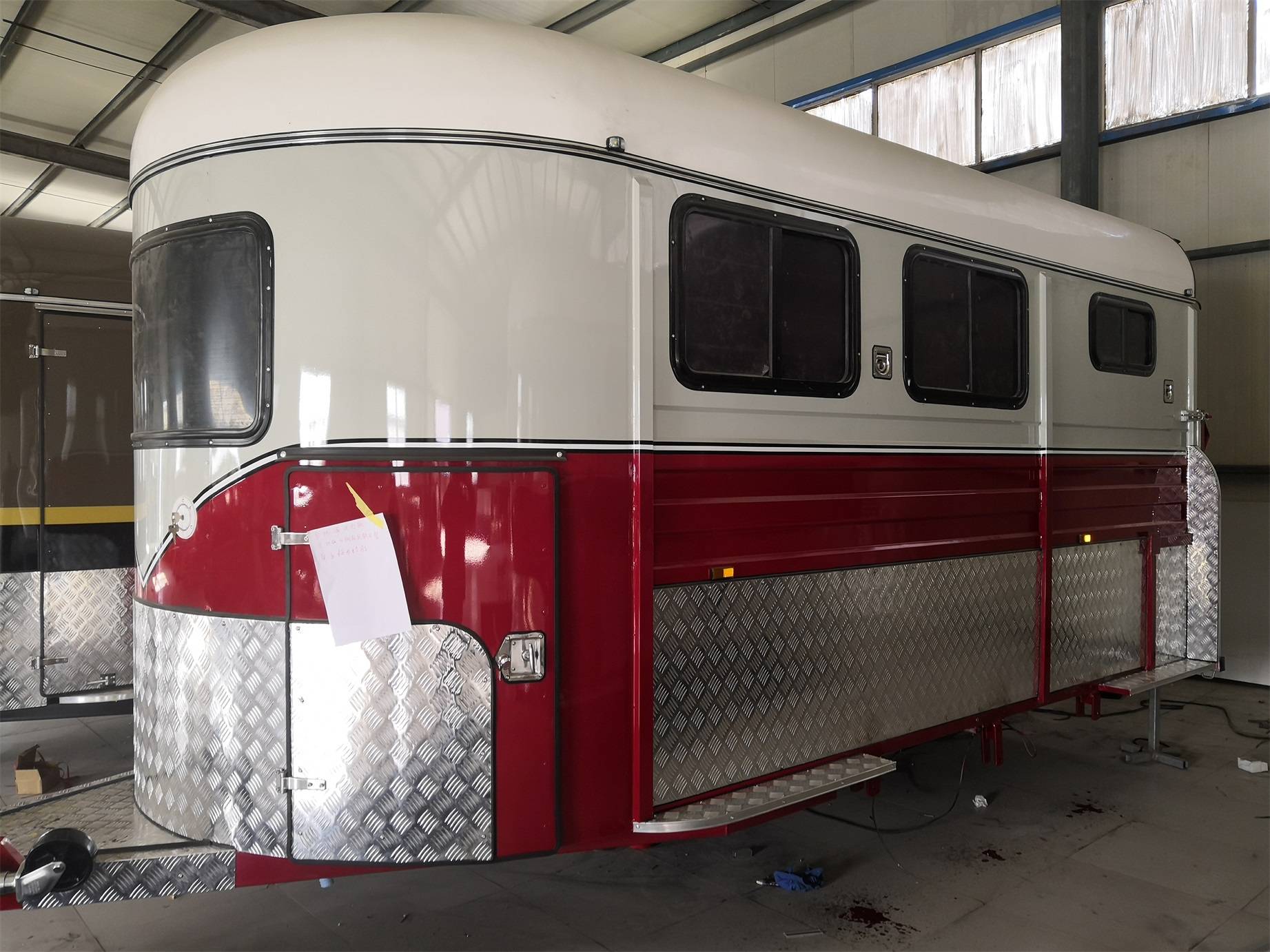

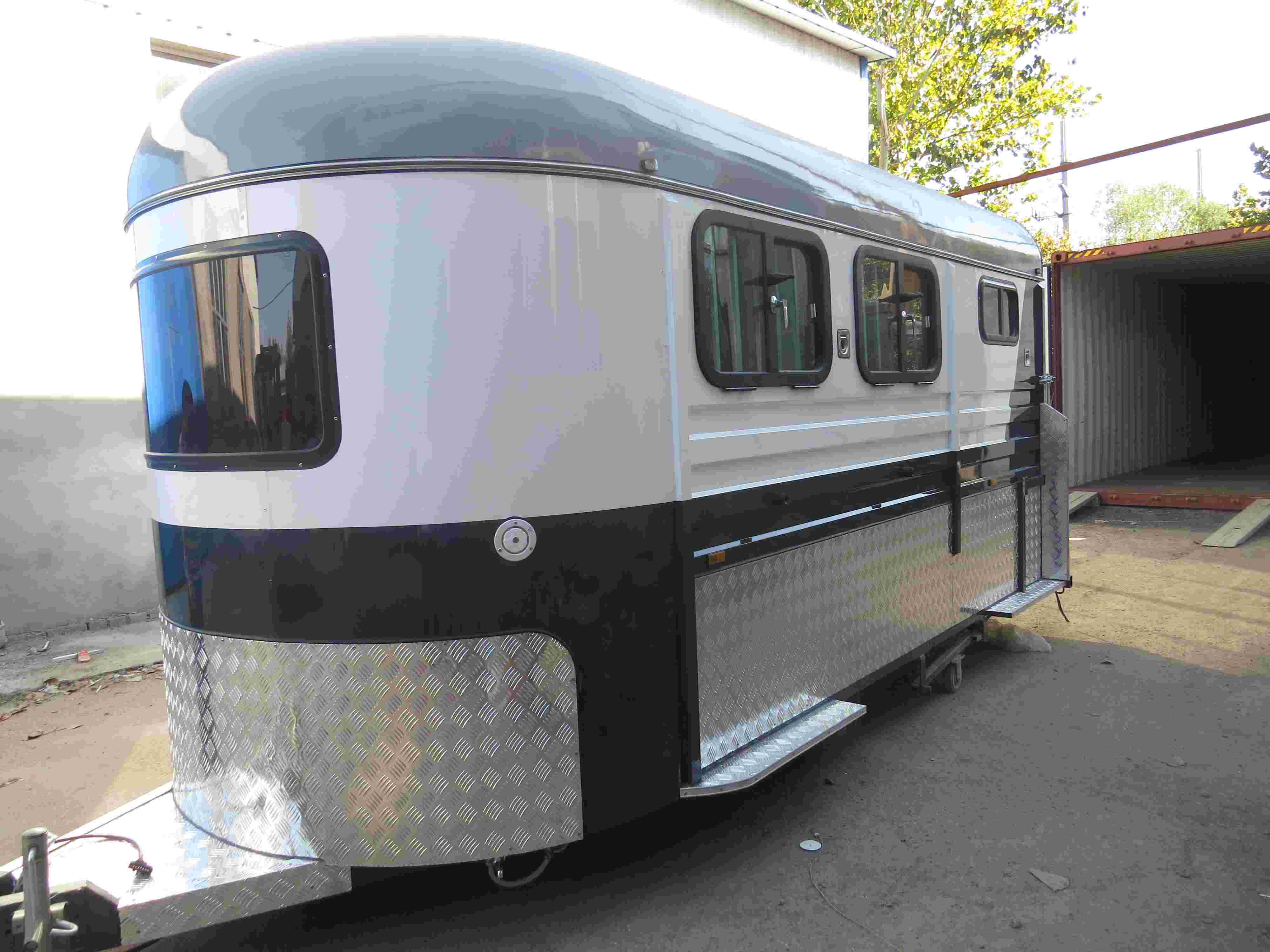

Standard Type 3 Horses Angle Load Horse Trailer
1. The double hot dip galvanized chassis offers a 5-20 years guarantee against rusting in bad working condition (most factories use hot dip galvanized pipe welding. Although the steel doesn’t rust, the welding parts will. We choose the whole chassis galvanized after welding .
2. Different ATM will need different tyres . Three horse and more will choose 205R tyres which can keep transportation much safer also conform the ADRS.
3. 50*50 axles making the trailer more strong
4. 17.5mm ultra thick anti-slip rupper floor
5. Water tank including the level display, Show you the detailed information .
6. protection cover for gas struts in tailgate .
The Standard type 3 horses angle load horse trailer is a practical and reliable choice for horse owners. It is designed to safely transport up to three horses. The angle load configuration makes loading and unloading effortless, minimizing stress on the horses. With a sturdy construction and high-quality materials, this trailer offers durability and stability on the road. It features ample ventilation to keep the horses comfortable and well-ventilated. The trailer also has secure locking mechanisms to ensure the safety of the horses during transit. Whether for local shows or long-distance trips, this horse trailer is a great investment.
Model | HR-3HAL-S |
Brake | Perfect security structure design, double axle electric brakes |
Suspension | Roll rocker tandem spring 7 plate |
Axles | Special trailer axles 50*50mm X 2 |
Wheels & Tyre | Five 205R14 tyres and 14’ aluminum alloy rims including a spare wheel |
Windows Doors | Front Window (mm) 1220*610mm |
Side Windows (Can choose Drop down windows) | |
Large size upturning ventilation windows X 2 | |

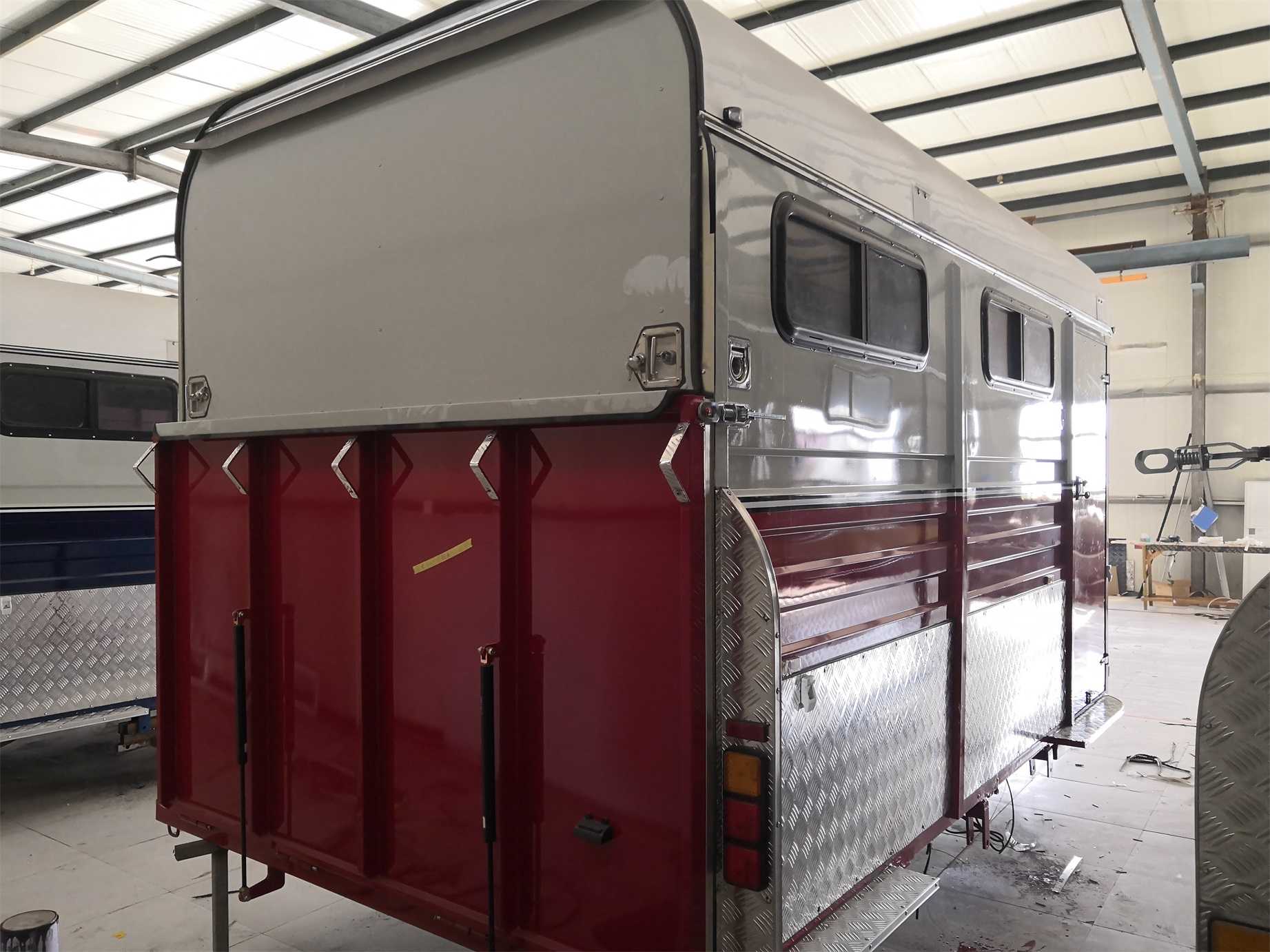

Rear Upper Door (mm) 1980*1065mm Strut & High-intensity anti-rust strut | |
Ramp Door (mm) 2030*1210 | |
Side Door (mm) 1730*615 | |
Hinges for Rear Upper Door special 6mm diameter copper hinges | |
Lights& Petro Reflectors | Trailer Plug Seven-prongs Plug |
Rear Lights brackets aluminium | |
LED interior lights, Small LED sidelights X 2, LED combination taillights X 2 | |
Retro Reflectors X 8 | |
Auxiliary Fittings | Horse Protection Frame fully padded |
Horse Ring X 7 | |
Saddle Rack X 3 (in saddle box) | |
Rug Rack X 1 | |
Saddle Box X 1 | |

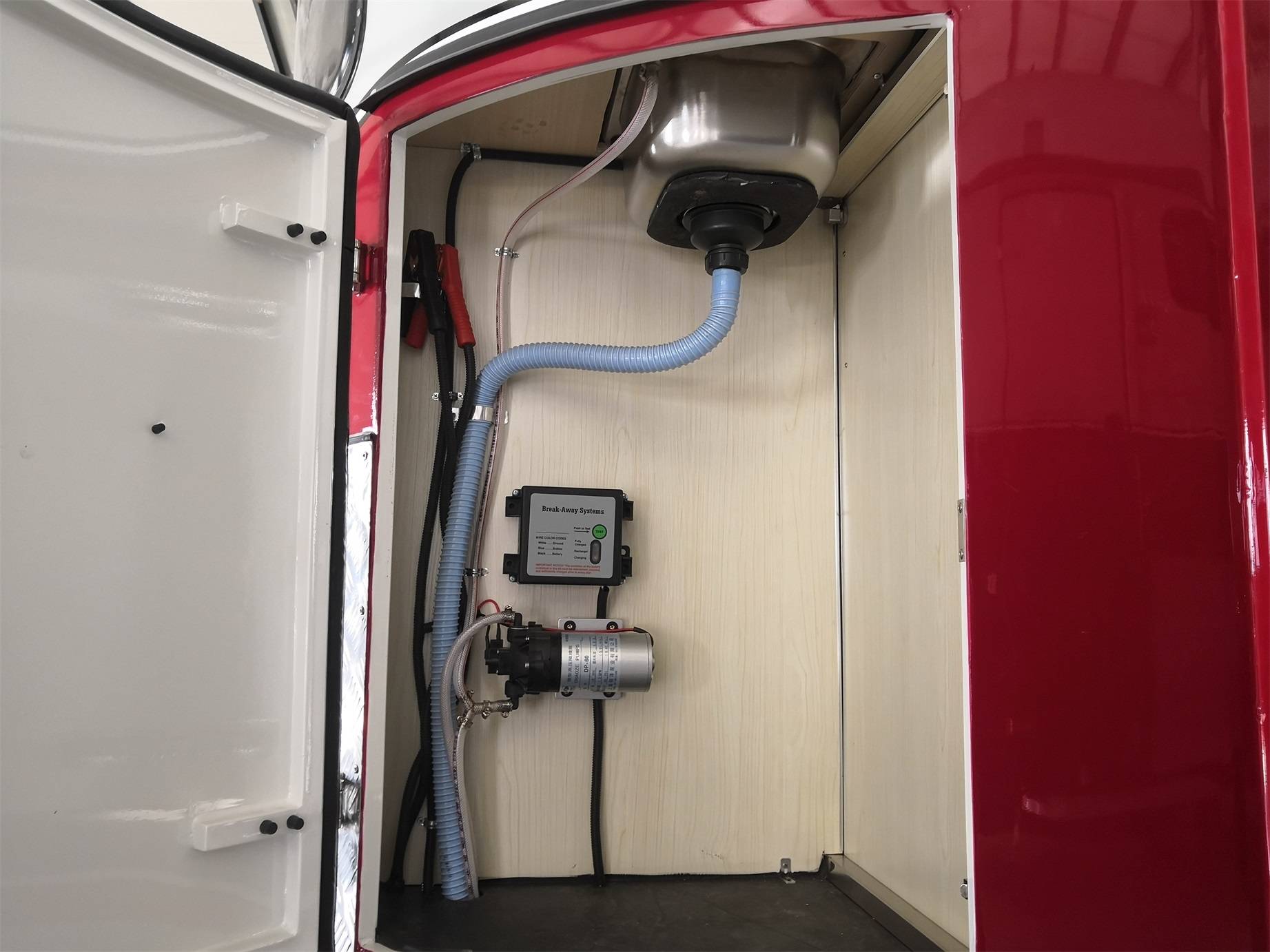

Optional Parts | Water tank,Water pump,Water basin, Water filling nozzle,Water tap |
Bed in horse zone | |
Awning, Air conditioning | |
Tool box on side(1.5mm/2.5mm thick) | |
Dimensions | Body Dimension (L x W x H: mm): 4575 x 1980 x 2230 |
Inner Dimension (L x W x H: mm) : 4525 x 1930 x 2155 | |
Overall Dimension(L x W x H: mm): 5425 x 2290 x 2600 | |
Length of Tone (mm): 850 | |
Empty Weight | 1600 KGs |
Carrying Capacity | 2500 KGs |

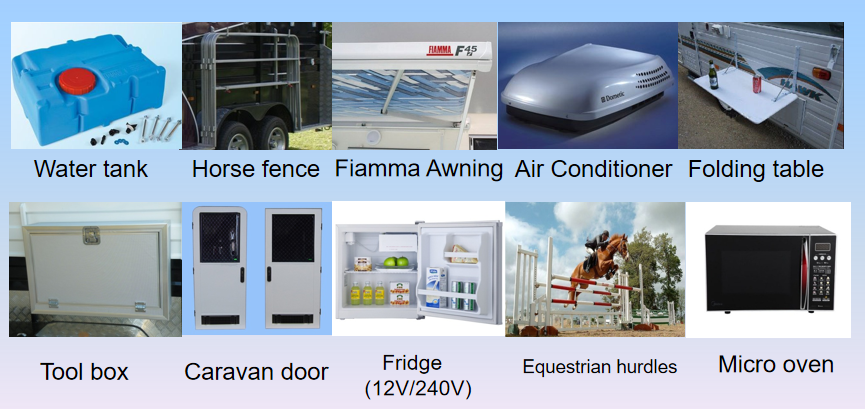

At the same time, we can also provide a large number of accessories according to customers’requirements. Here below is some of them. Please let me know if you have other demand.
