Standard Type 2 Horses Angle Load Horse Trailer

Our merchandise include, however now not confined to the following advantages:

1. The double warm dip galvanized chassis affords a 5-20 years assurance in opposition to rusting in terrible working circumstance (most factories use warm dip galvanized pipe welding. Although the metal doesn’t rust, the welding components will. We pick the total chassis galvanized after welding .
2. Different ATM will need one of a kind tyres . Three horse and extra will select 205R tyres which can hold transportation a good deal safer additionally conform the ADRS.
3. 50*50 axles making the trailer greater sturdy
4. 17.5mm extremely thick anti-slip rupper flooring
5. Water tank which includes the degree display, Show you the precise records .

Contact Now E-Mail Telephone

Product Details

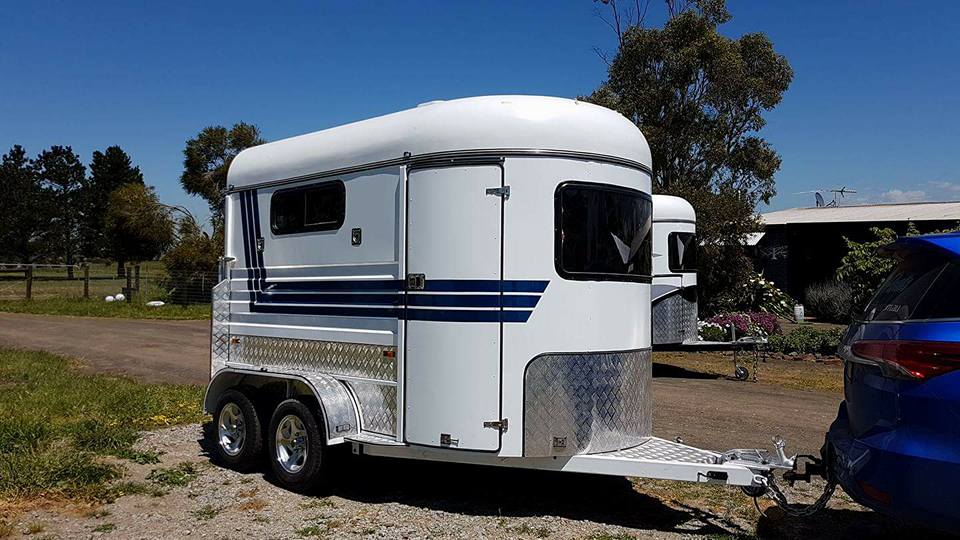

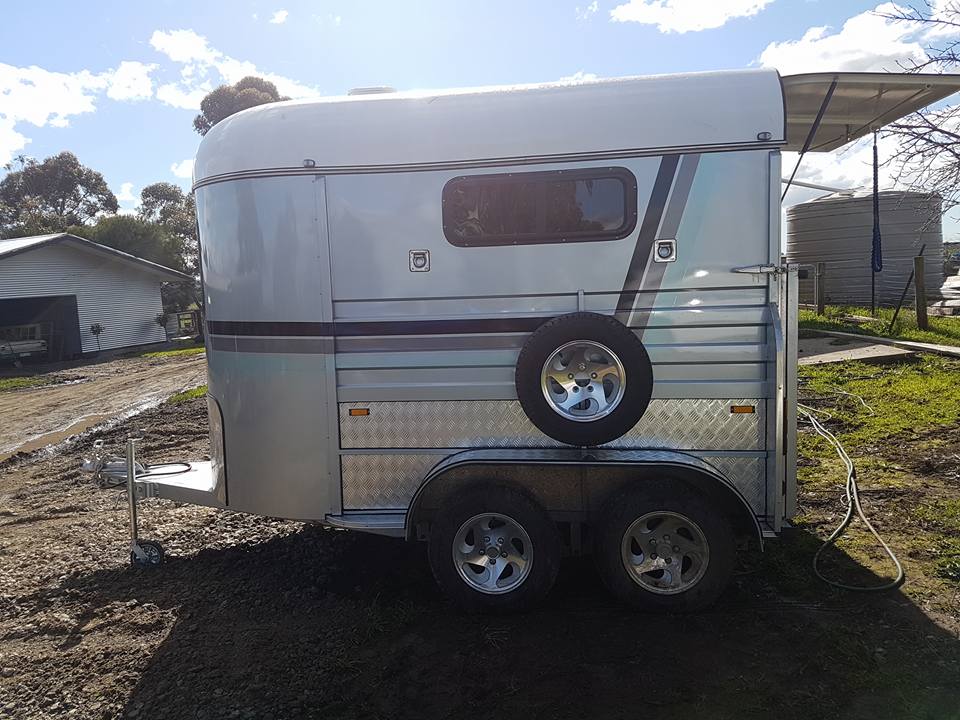

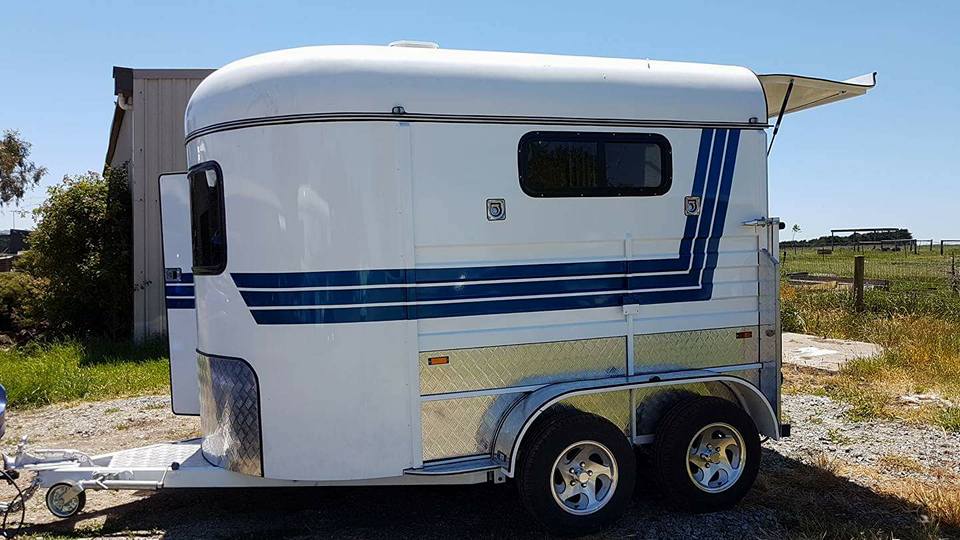

The standard type 2 horses angle load horse trailer is a practical and reliable transportation solution for horse owners. Designed to safely carry two horses, it features an angle load configuration. This allows for easy loading and unloading, minimizing stress on the horses. The trailer is constructed with high-quality materials to ensure durability and stability on the road. With proper ventilation and secure compartments, it provides a comfortable and safe journey for the equine passengers. Whether for local shows or long-distance trips, this trailer is a great choice.

standard type 2 horses angle load horse trailer

Model	HR-2HAL-L860
Materials	Chassis Material: double hot dip galvanized RHS (3.5mm-4.0mm)
	Frame Material: double hot dip galvanized RHS (2.5mm)
	Body Panel: galvanized sheet (1-1.5mm)
	Roof: Special molded FRP
Brake	Perfect security structure design, double axle electric brakes
Drawbar	Drawbar Checker Plate 1.2mm aluminium
	Drawbar Safety Chain two & Bracing Wheel one
Suspension	Roll rocker tandem spring 7 plate
Axles	Two special trailer axles 50*50
Wheels & Tyre Rubber Matting	Five 185R14 tyres and 14' aluminum alloy rims including a spare wheel
Rubber Matting	18mm special plywood for floor& ramp door
	Rubber Matting For Inner Side Panel 6mm Rubber Matting
	Rubber Matting For Floor & Ramp Door 17.5 mm anti-slip rubber sheet
Windows& Doors	Front Window (mm) 1220*610
	Side Sash Windows 600mm400mm4
	Skylight two large size upturning ventilation windows
	Rear Upper Door (mm)1980*1065 Strut & High-intensity anti-rust strut
	Ramp Door (mm) 2030*1210

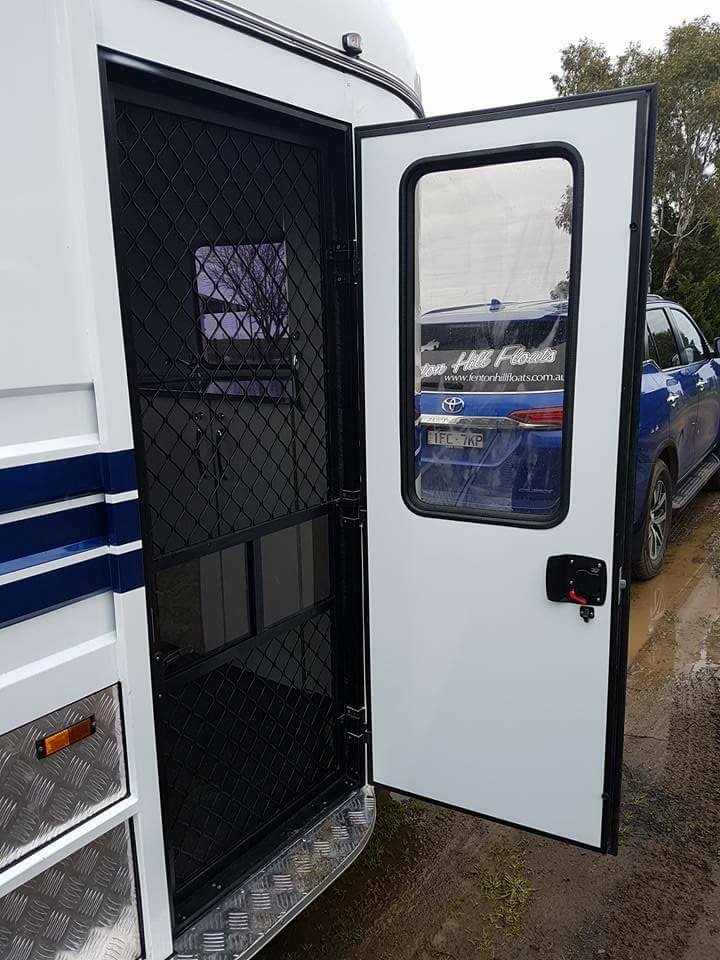

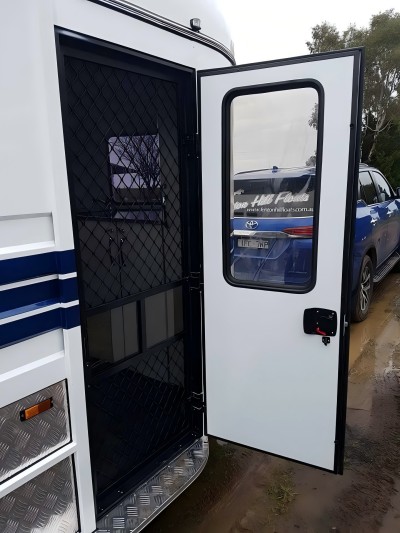

	Side Door (mm) 1730*615
	Hinges for Rear Upper Door special 6mm diameter copper hinges
Supporting Wheel	Swing-able knight supporting wheels to make parking safe and reliable
Lights& Petro Reflectors	Trailer Plug Seven-prongs Plug
	Rear Lights brackets aluminium
	LED interior lights, two small LED sidelights, two LED combination taillights
	Retro Reflectors 8
Auxiliary Fittings	Cupboard Front

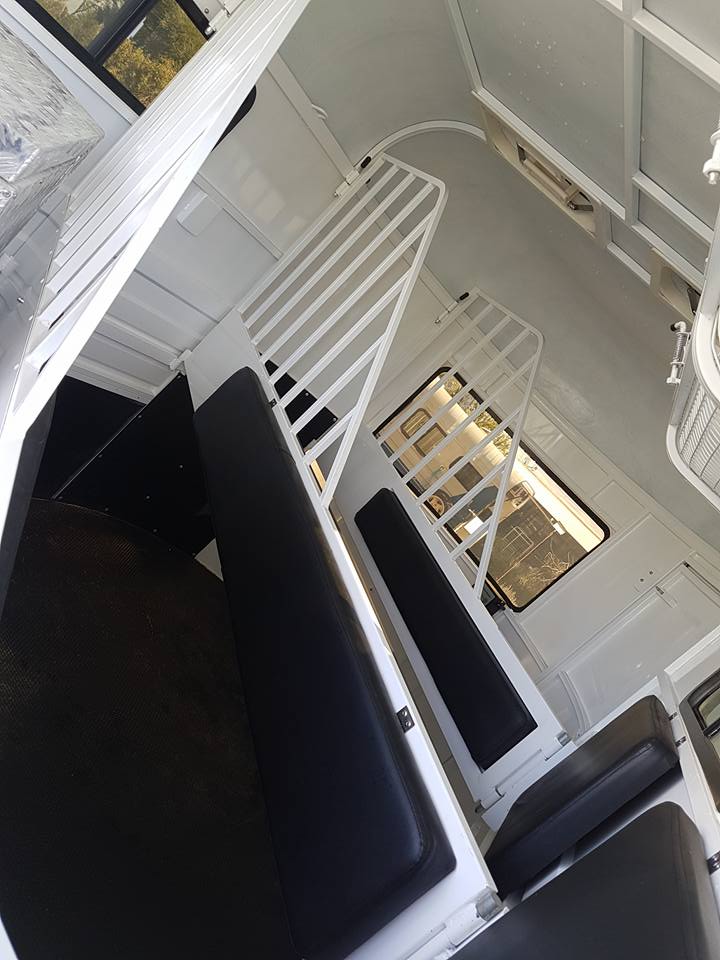

	Horse Protection Frame fully padded
	Horse Ring Four

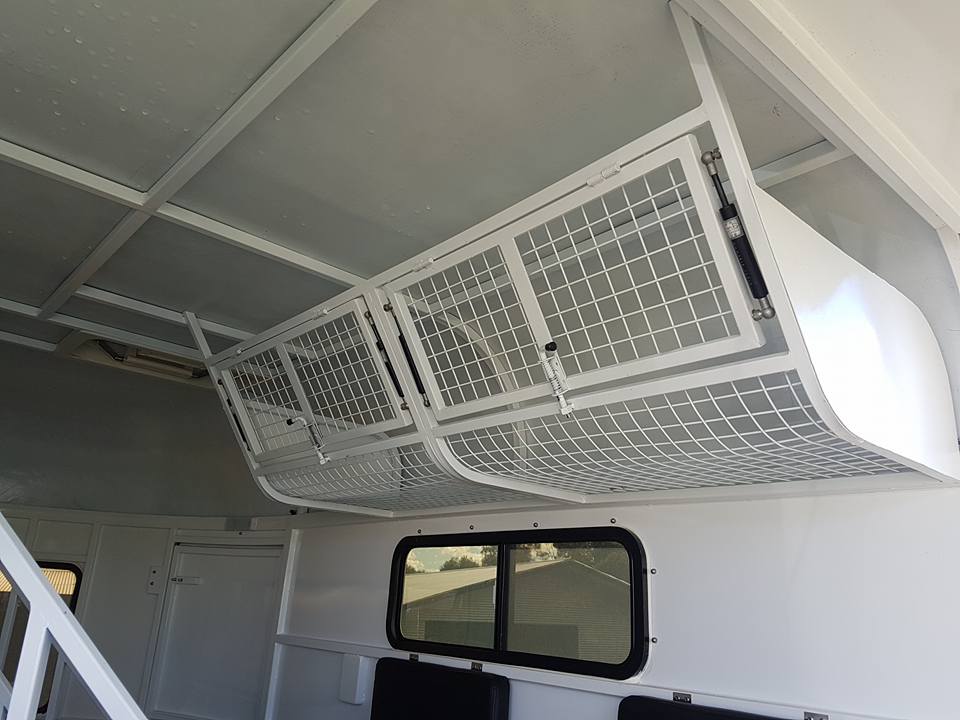

	Saddle Rack in saddle box(1200mm height for 2 saddles)
	Rug Rack Side
	Saddle Box One
Dimensions	Body Dimension (L x W x H: mm) : 4120 x 1980 x 2230
	Inner Dimension (L x W x H: mm) : 4070 x 1930 x 2155
	Overall Dimension(L x W x H: mm): 4970 x 2290 x 2600
	Length of Tone (mm): 850
Empty Weight	1500 KGs
Carrying capacity	1800 KGs

standard type 2 horses angle load horse trailer

As one of the main horse trailer producer in China , with many years of experiences in production. We are acquainted with each kind of horse trailer in Australia and we can produce personalized horse trailers as per your request. As we are a manufacturer, we can furnish trailers of excessive great to you at the quality price. We consider that we will be your great accomplice in China!

Real view of the company
