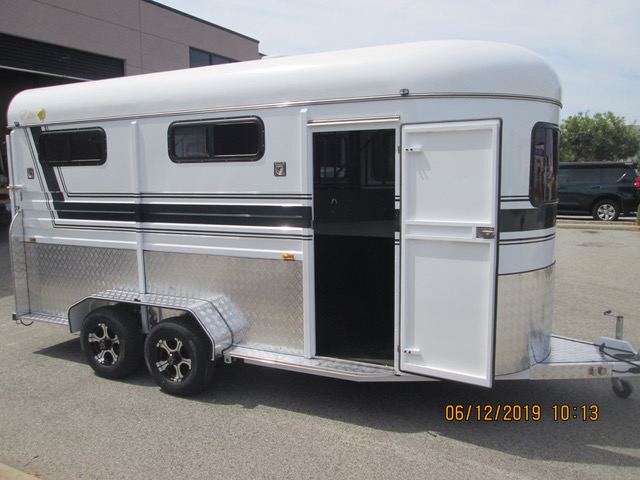

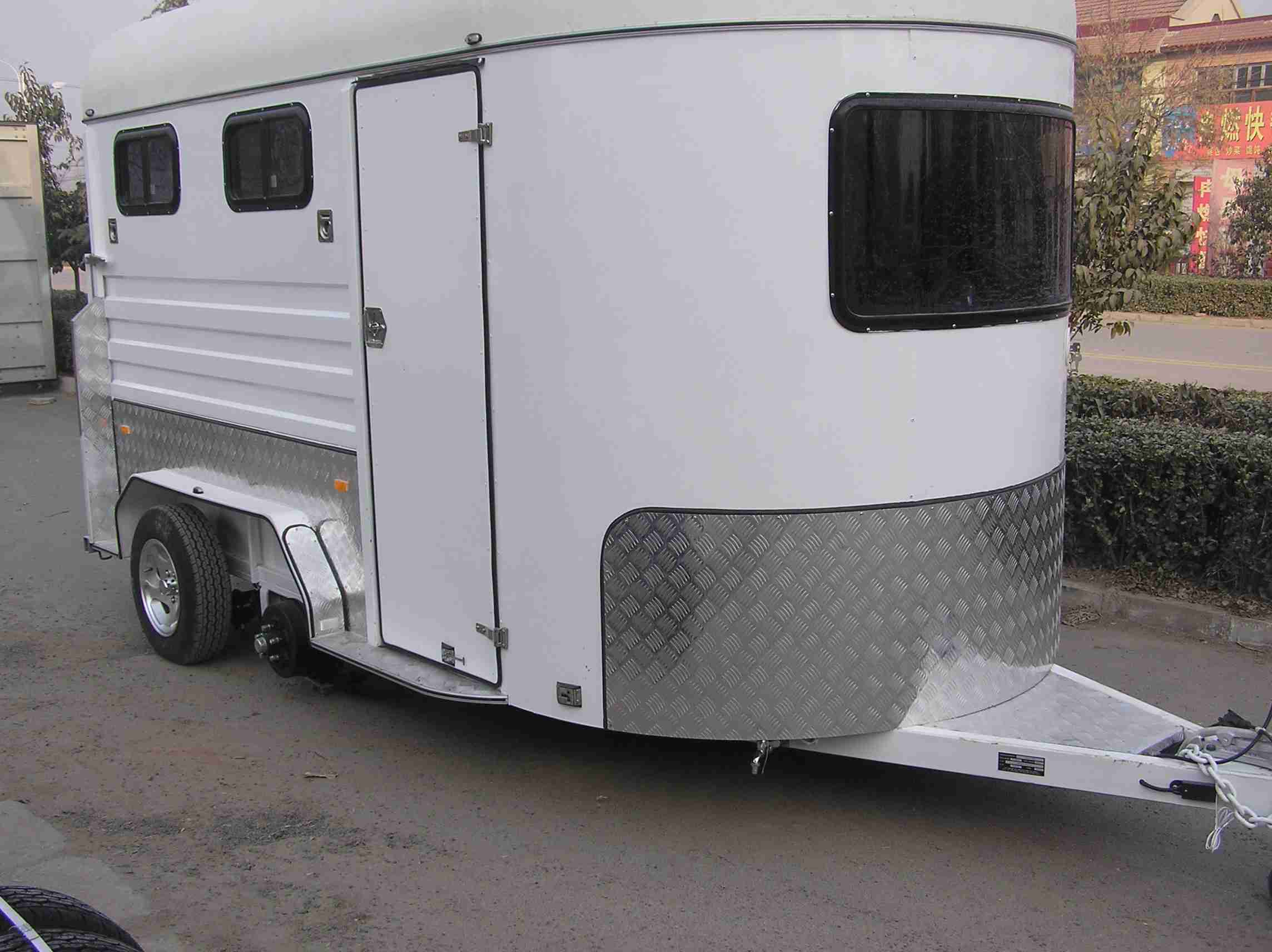

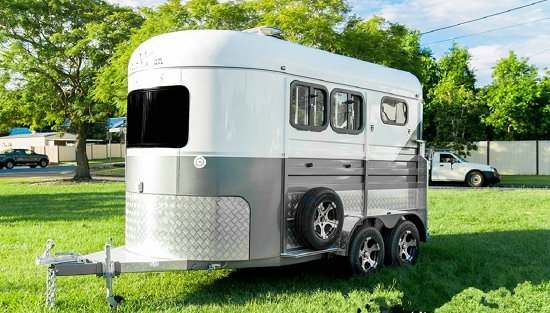

Angle Load Horse Float for 2 Horses

1. Optimized Loading Angle: Angled design facilitates smoother entry and exit for horses, reducing transport stress.

2. Ample Space: Provides enough room for two horses, ensuring comfort and freedom of movement.

3. Durable Materials: Made from high-strength materials for safety and longevity.

4. Good Ventilation: Air vents maintain airflow and reduce horse anxiety.

5. Strong Stability: Designed chassis and suspension ensure stable and smooth travel.

6. User-Friendly: Convenient doors simplify the loading and unloading process.

7. Safety Features: Equipped with safety belts and guardrails for added protection.

Contact Now E-Mail Telephone

Product Details

The Angle Loading Two Horse Wagon is an efficient transportation tool designed for horse owners and equestrians. Its unique angle loading design allows for smoother entry and exit of the horses and reduces stress during transportation. The wagon offers ample space to comfortably accommodate two horses, ensuring they have plenty of freedom of movement during transportation.

The wagon is manufactured using strong and durable materials to ensure safety and long-term use. The vents in the design maintain good air circulation and help reduce the anxiety of the horses. The well-designed chassis and suspension system ensures a stable and comfortable ride, while the convenient entry and exit doors are designed to make loading and unloading easier. In addition, safety features such as seat belts and guard rails provide extra protection for the horses, making them safer during transportation. This wagon is ideal for horse transportation and meets a variety of needs.

1.The product parameters are as follows

Model	HR-2HAL-S
Materials	Chassis Material: double hot dip galvanized RHS (3.5mm-4.0mm)
	Frame Material: double hot dip galvanized RHS (2.5mm)
	Body Panel: galvanized sheet (1-1.5mm)
	Roof: Special molded FRP 3mm
Brake	Perfect security structure design, double axle electric brakes
Drawbar	Drawbar Checker Plate 1.2mm aluminium
	Drawbar Safety Chain two & Bracing Wheel one
Suspension	Roll rocker tandem spring 5 plate
Axles	Two special trailer axles 50*50mm
Wheels & Tyre	Five 185R14C tyres and 14’ aluminum alloy rims including a spare wheel
Rubber Matting	18mm special plywood for floor& ramp door
	Rubber Matting For Inner Side Panel 6mm Rubber Matting
	Rubber Matting For Floor & Ramp Door 17.5mm anti-slip rubber sheet
Windows& Doors	Front Window (mm) 1220*610
	Side Windows 900*300mm

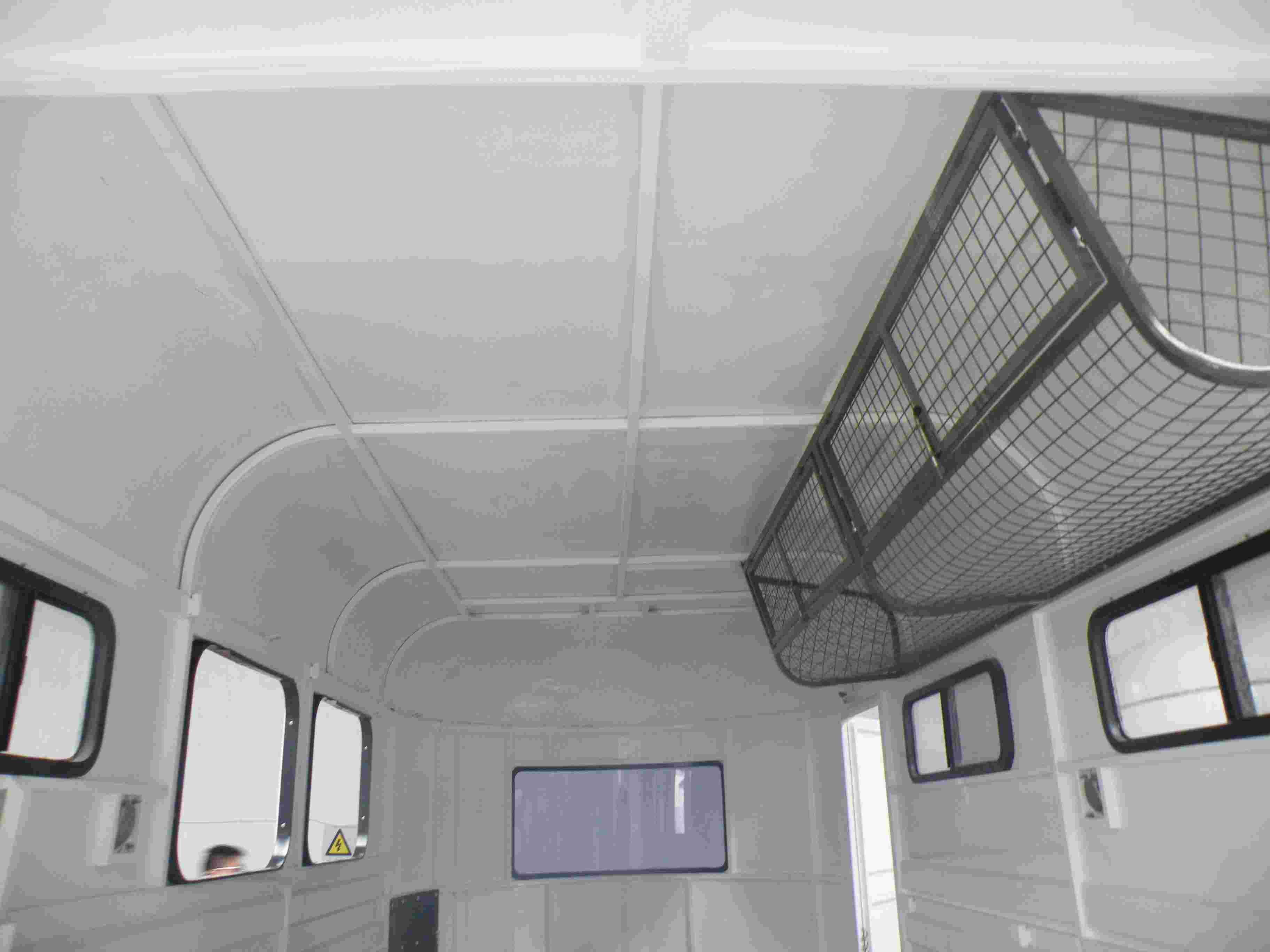

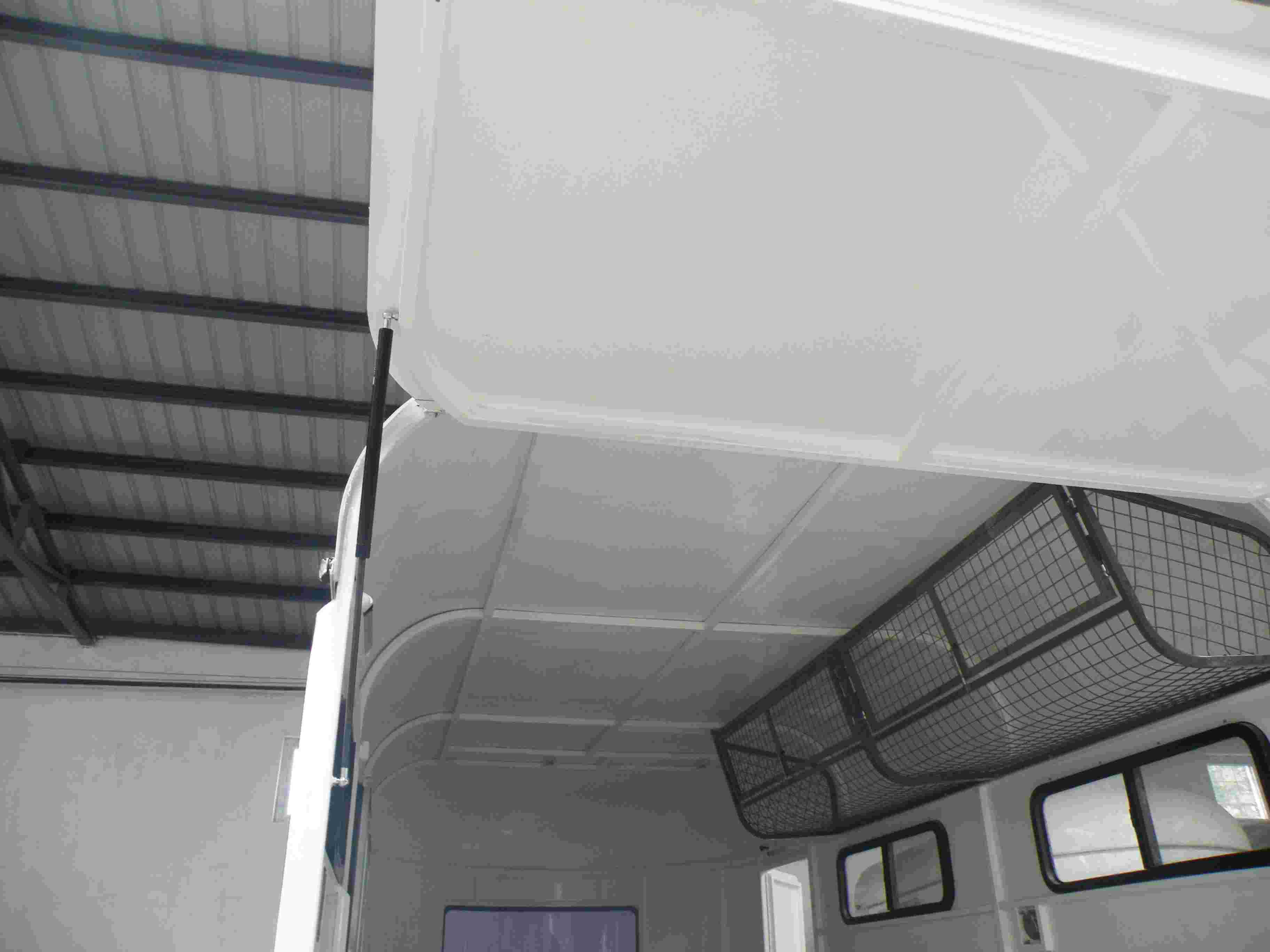

	Skylight two large size upturning ventilation windows

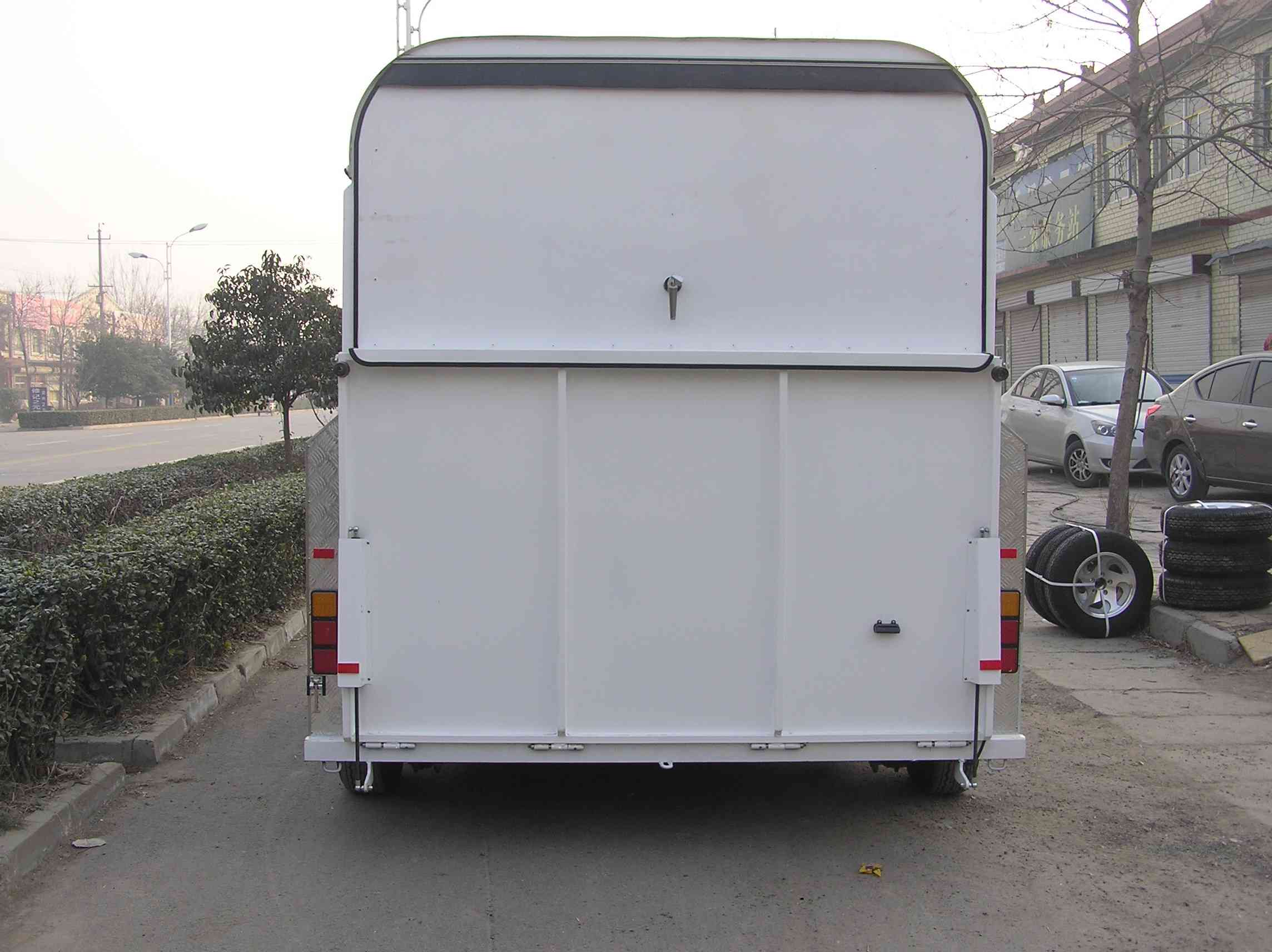

	Rear Upper Door (mm) 1980*1065 Strut & High-intensity anti-rust strut

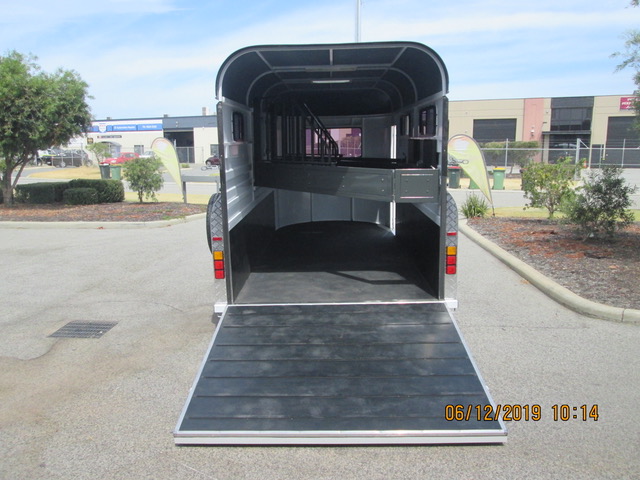

	Ramp Door (mm) 2030*1210

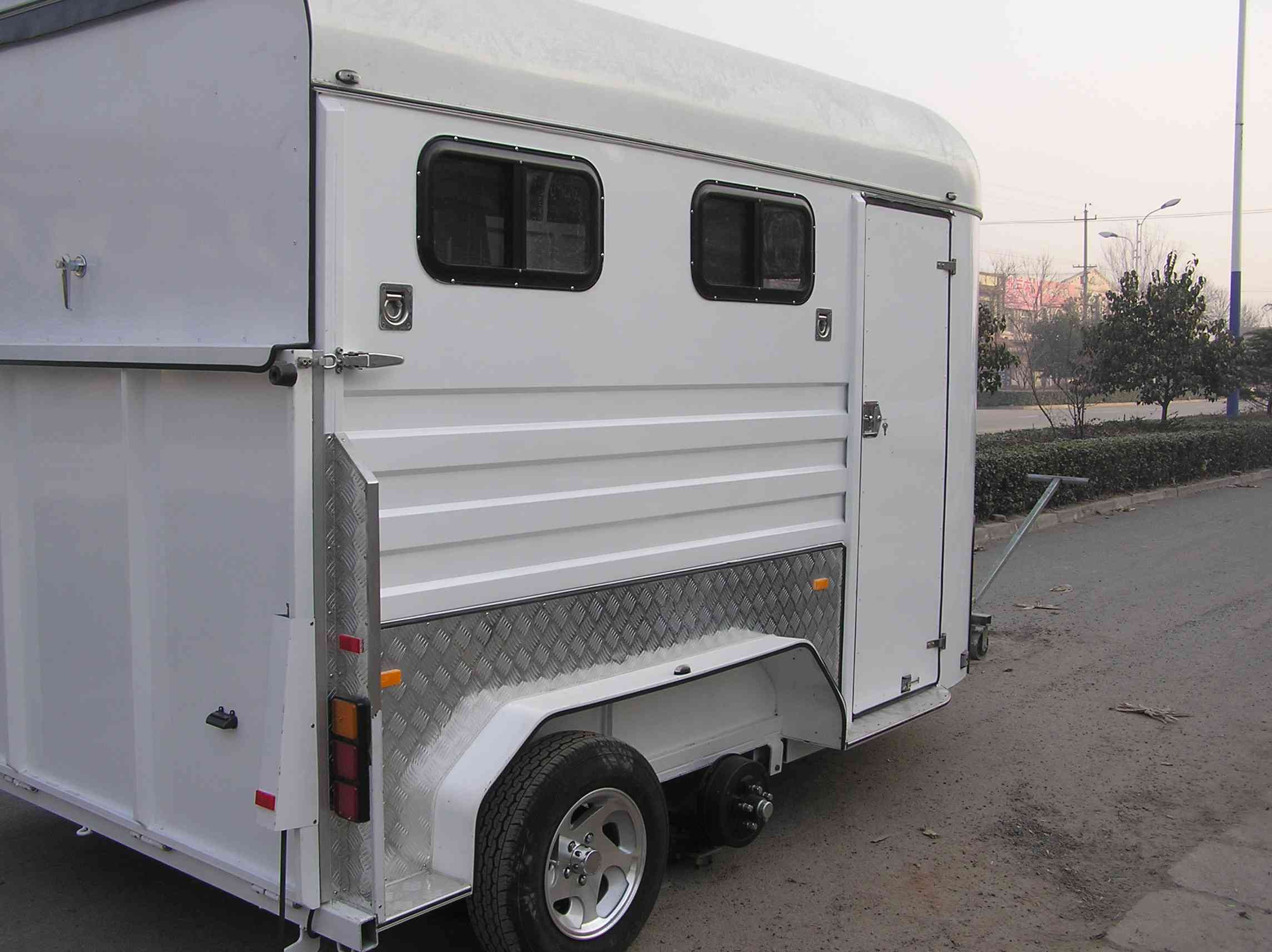

	Side Door (mm) 1730*615
	Hinges for Rear Upper Door special 6mm diameter copper hinges
Supporting Wheel	Swing-able knight supporting wheels to make parking safe and reliable
Lights& Petro Reflectors	Trailer Plug Seven-prongs Plug
	Rear Lights brackets aluminium
	LED interior lights, two small LED sidelights, two LED combination taillights
	Retro Reflectors 10
Auxiliary Fittings	Cupboard None
	Horse Protection Frame fully padded
	Horse Ring 6
	Saddle Rack in saddle box(1200mm height for 2 saddles)
	Rug Rack Side
	Saddle Box One
Dimensions	Body Dimension (L x W x H: mm) : 3260 x 1980 x 2230
	Inner Dimension (L x W x H: mm) : 3210 x 1930 x 2155
	Overall Dimension(L x W x H: mm): 4110 x 2290 x 2600
	Length of Tone (mm): 850
Empty Weight	1250 KGs
Carrying Capacity	1500 KGs
