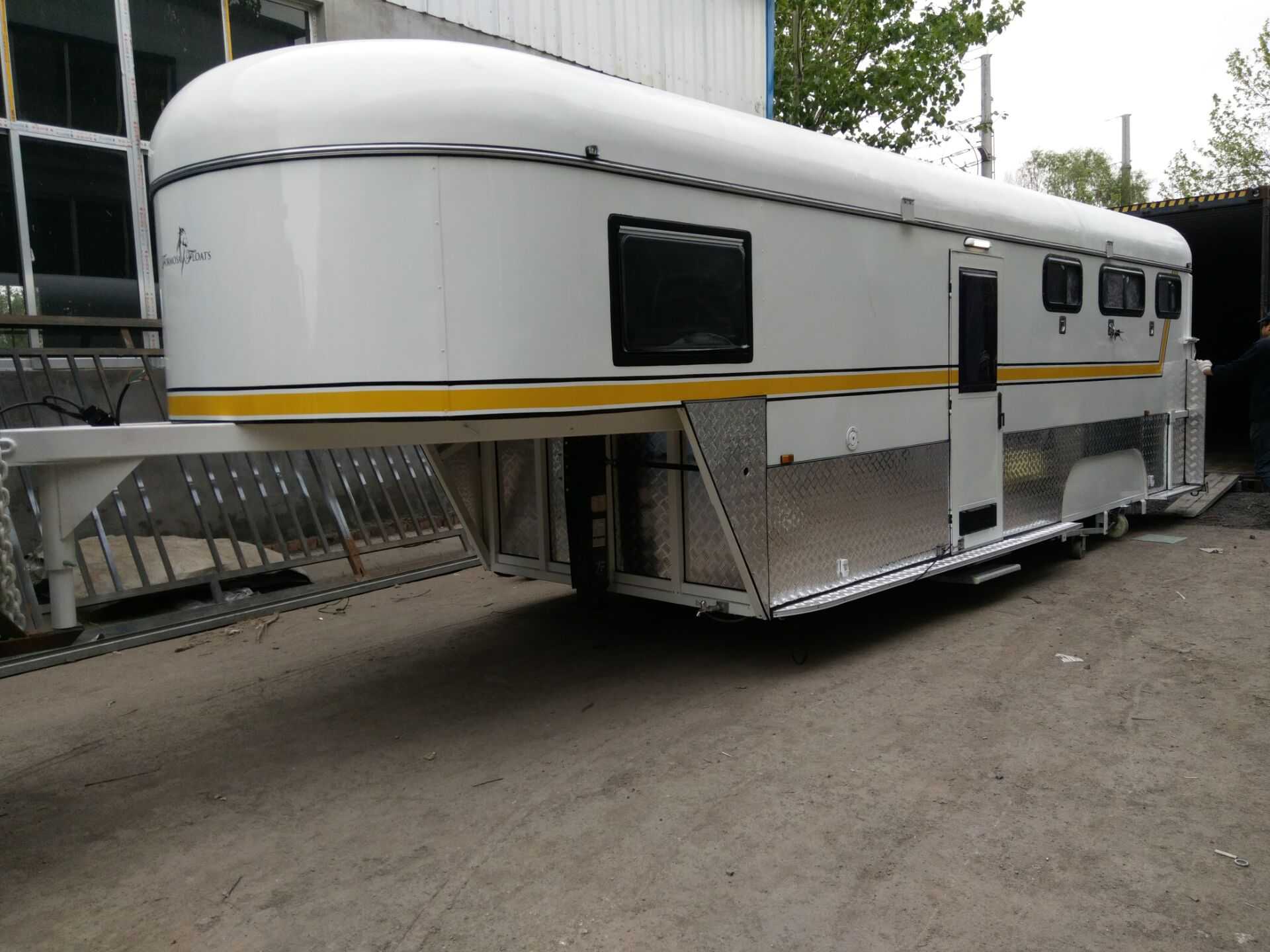

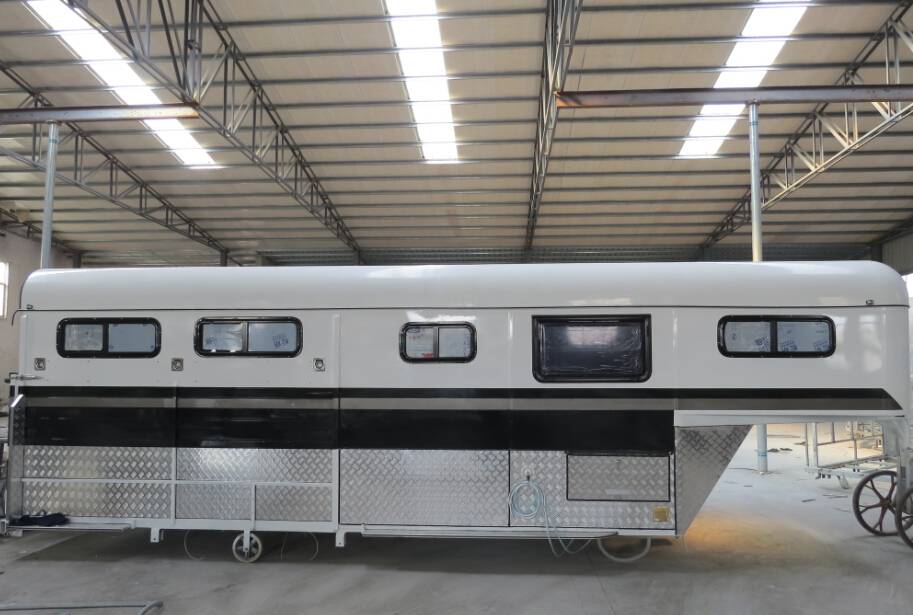

Custom Made Square Front Horse Trailer
1. The double hot dip galvanized chassis offers a 5-20 years guarantee against rusting in bad working condition (most factories use hot dip galvanized pipe welding. Although the steel doesn’t rust, the welding parts will. We choose the whole chassis galvanized after welding .
2. Different ATM will need different tyres . Three horse and more will choose 205R tyres which can keep transportation much safer also conform the ADRS.
3. 50*50 axles making the trailer more strong
4. 17.5mm ultra thick anti-slip rupper floor
5. Water tank including the level display, Show you the detailed information .
6. protection cover for gas struts in tailgate .
7. Gooseneck with big capacity adopts gas brake .
8. Beautiful style of closed front .
9. FRP roof is much tougher
10. Upgated U shape big horse ring is tougher and more convenient.

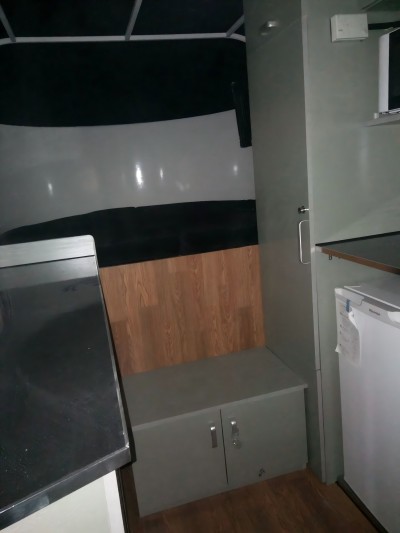

11. Button lock in the cupboard , practical and convenient .
12. Australian standard coded Trailer chain
13. The user instructions are provided

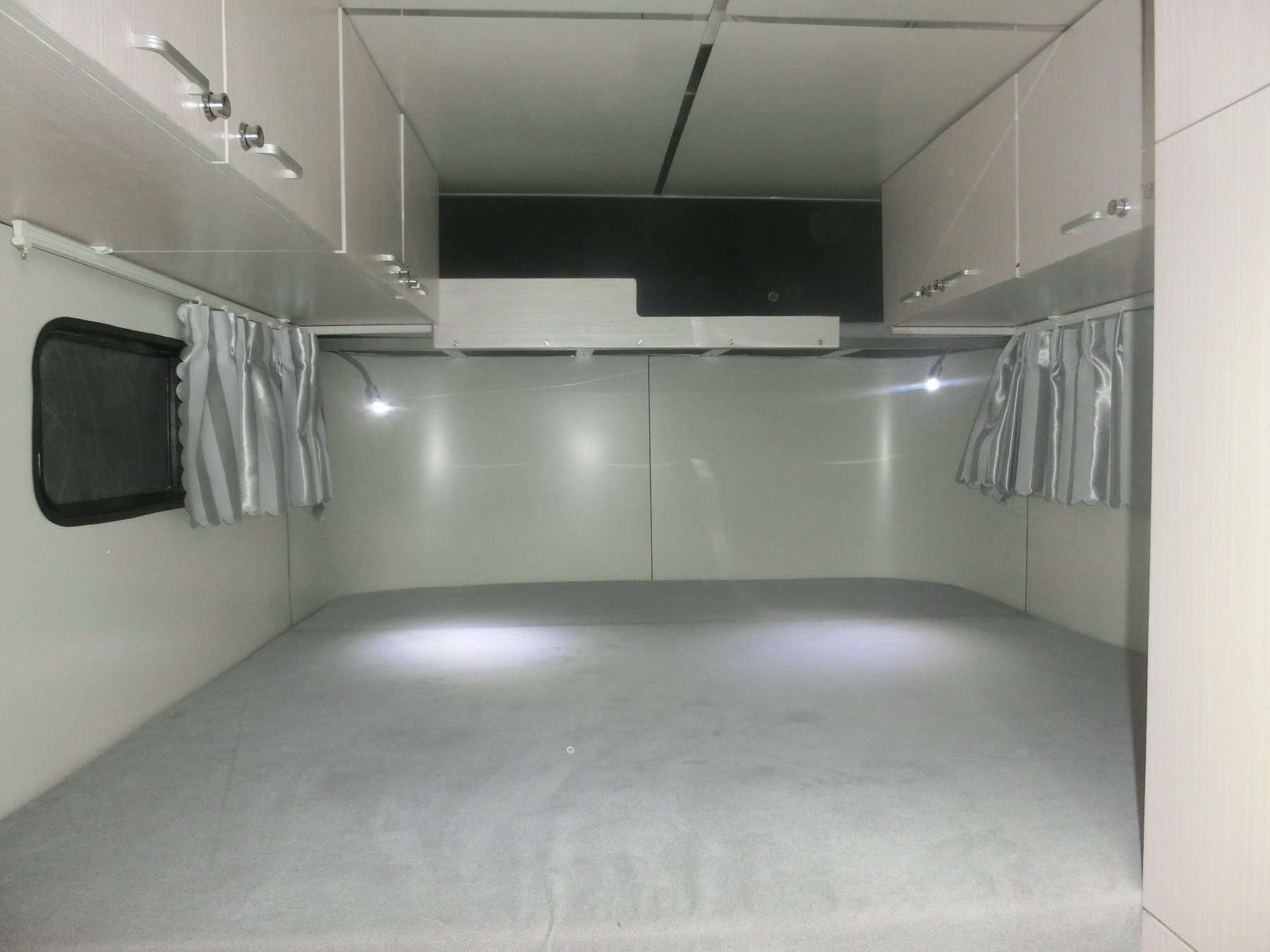

The custom made square front horse trailer is a unique and tailored transportation solution for horse owners. This trailer is crafted to meet specific requirements and preferences. The square front design offers a distinctive look and provides additional space. It is built with high-quality materials to ensure durability and safety. The interior is carefully designed to keep horses comfortable during transit, with proper ventilation and padding. The custom features allow for personalized touches, making it a one-of-a-kind trailer. Whether for competitions or leisurely rides, this custom horse trailer is a reliable and stylish choice.
Model | QE-4HGSN |
Materials | Chassis Material: double hot dip galvanized RHS (3.5mm-4.0mm) |
Frame Material: double hot dip galvanized RHS (2.5mm) | |
Body Panel: galvanized sheet (1-1.5mm) | |
Roof: Special molded FRP 3mm | |
Brake | Perfect security structure design, double axles electric brakes |
Drawbar | Drawbar Checker Plate 1.2mm aluminum |
Drawbar Safety Chain two & Bracing Wheel one | |
Suspension | Roll rocker tandem spring 9 plate |
Axles | Two special trailer axles 50*50mm |
Wheels & Tyre | Five 205R14 tyre and 14'aluminum alloy rims, including a spare tire |
Rubber Matting | 18mm special plywood for floor& ramp door |
Rubber Matting For Inner Side Panel 6mm Rubber Matting | |
Rubber Matting For Floor & Ramp Door 17.5 mm anti-slip rubber sheet | |
Window &Door | Side Windows 4 drop-down windows,4 caravan windows,2 rectangular windows |
Skylights four large size upturning ventilation windows | |
Rear Upper Door (mm) 2020*1065 Strut & High-intensity anti-rust strut | |
Ramp Door (mm) 2020*1210 | |
Side Door (mm) 1755*615 caravan door | |
Supporting Wheel | Hinges for Rear Upper Door special 6mm diameter copper hinges |
Swing-able knight supporting wheels to make parking safe and reliable | |
Lights& Petro Reflectors | Trailer Plug Seven-prongs Plug |
Rear Lights brackets aluminum | |
LED interior lights, two small LED sidelights, two LED combination taillights | |
Retro Reflectors 12 | |

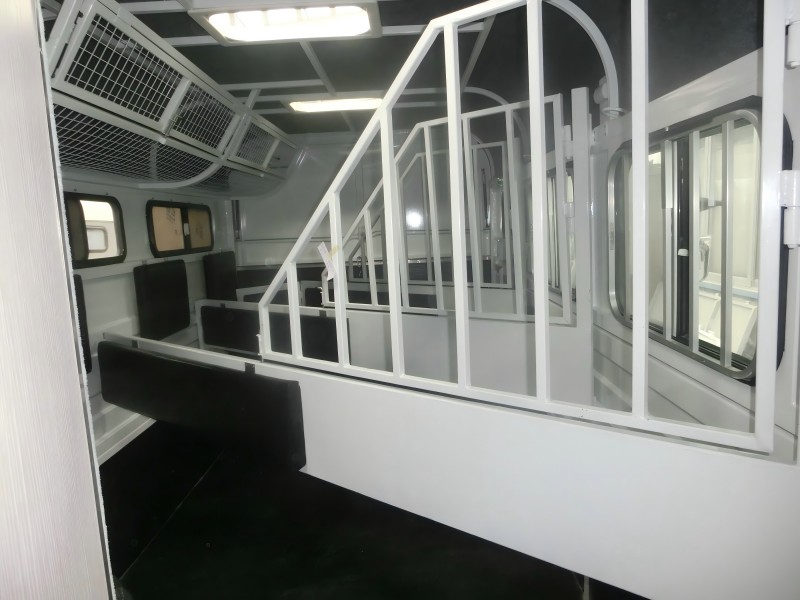

Auxiliary Fittings | Horse Protection Frame fully padded |
Horse Ring eight | |
Saddle Rack in saddle box for 4 horses | |
Rug Rack Side | |
Saddle Box one | |

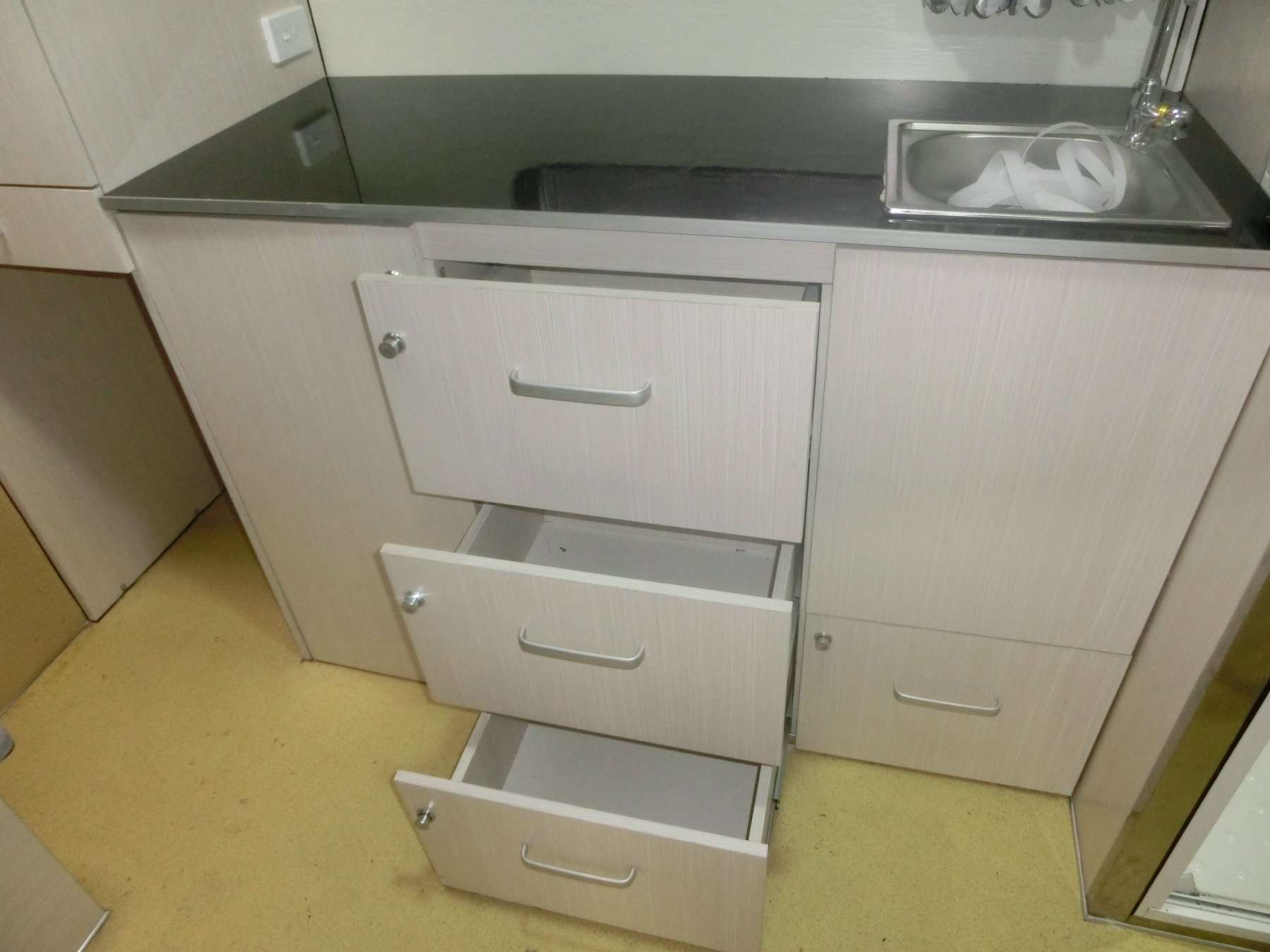

Cupboard side | |

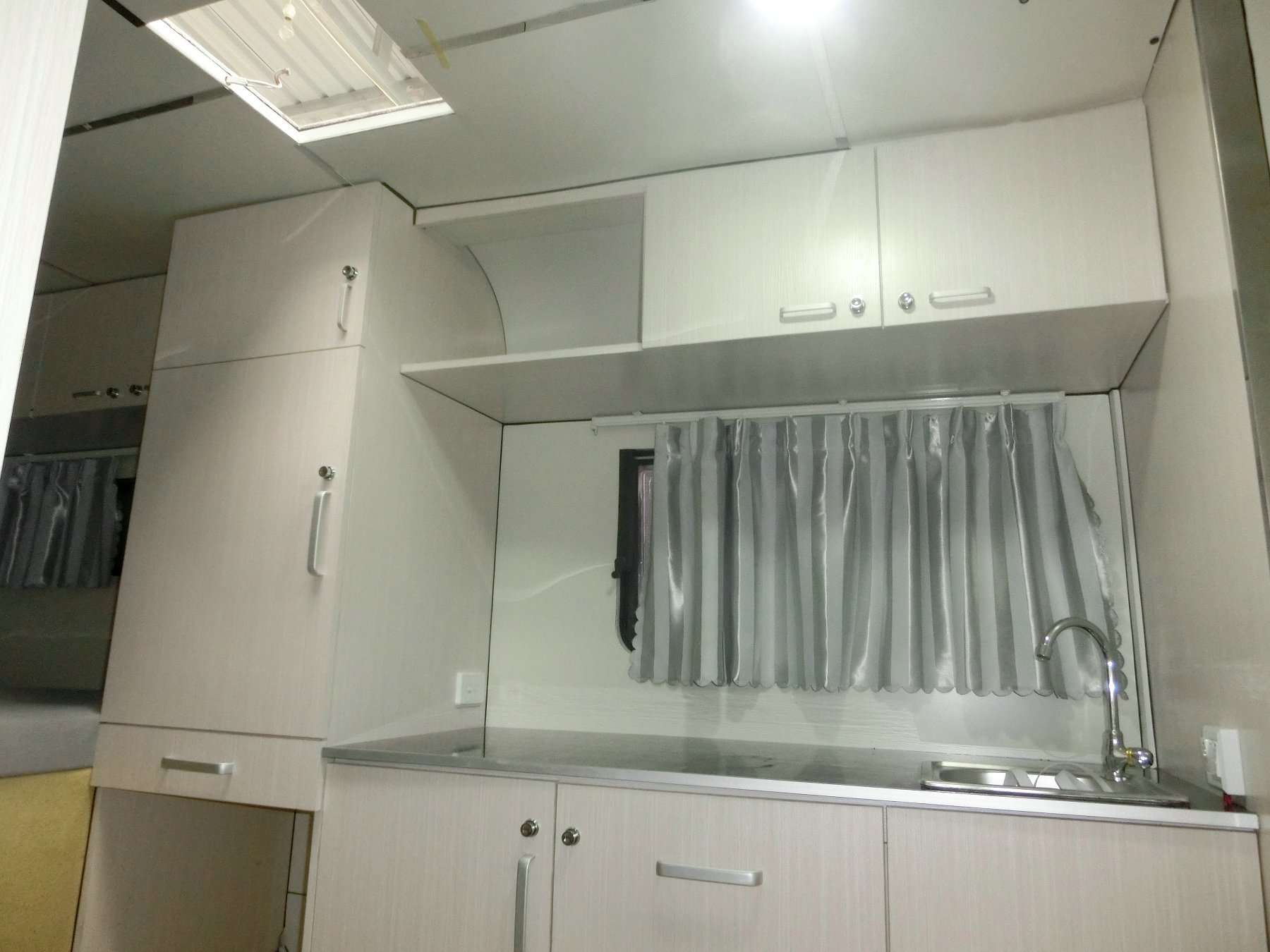

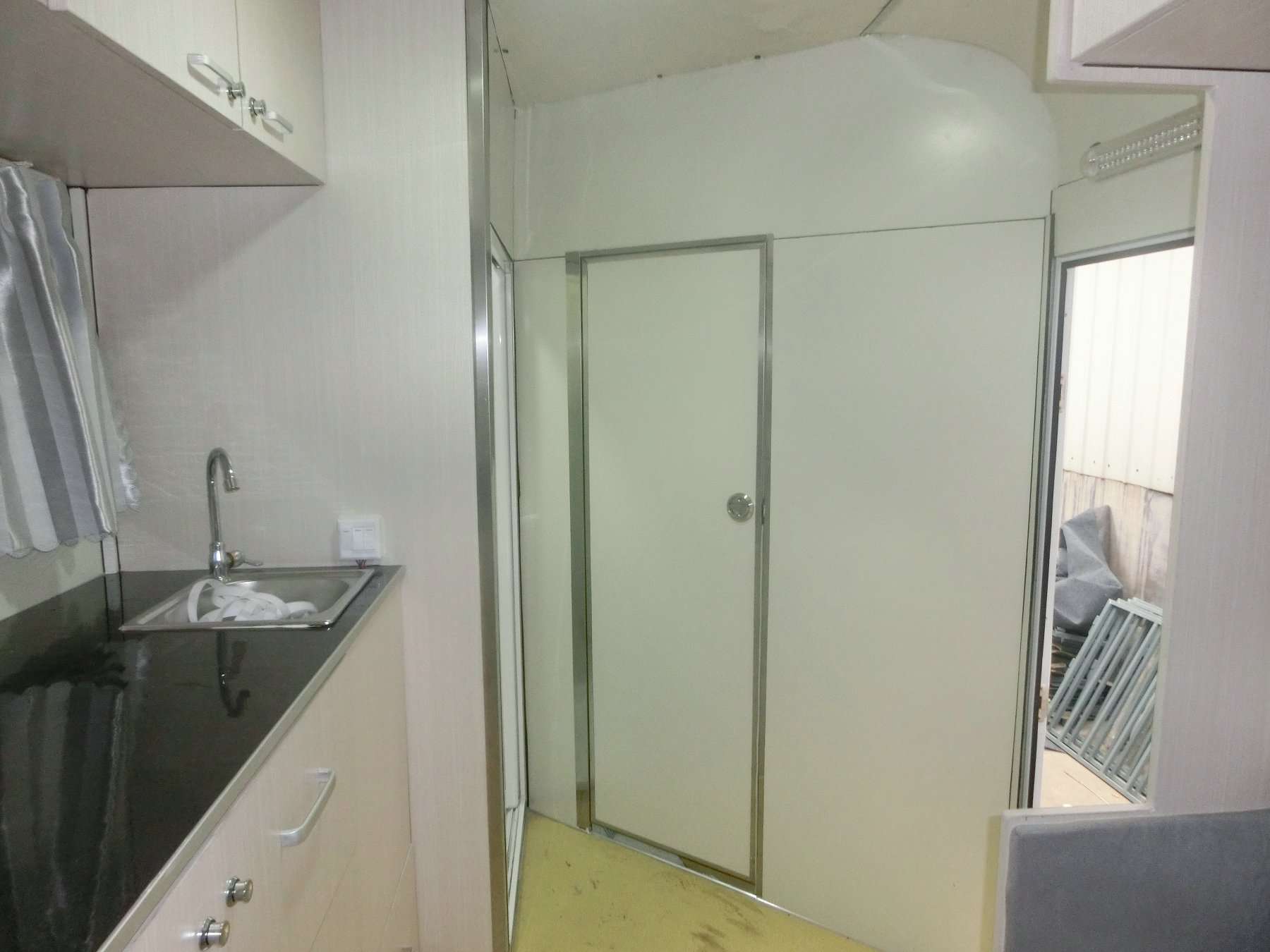

Optional Parts | Water Tank,Pump, water filling nozzle, water tap, water basin |

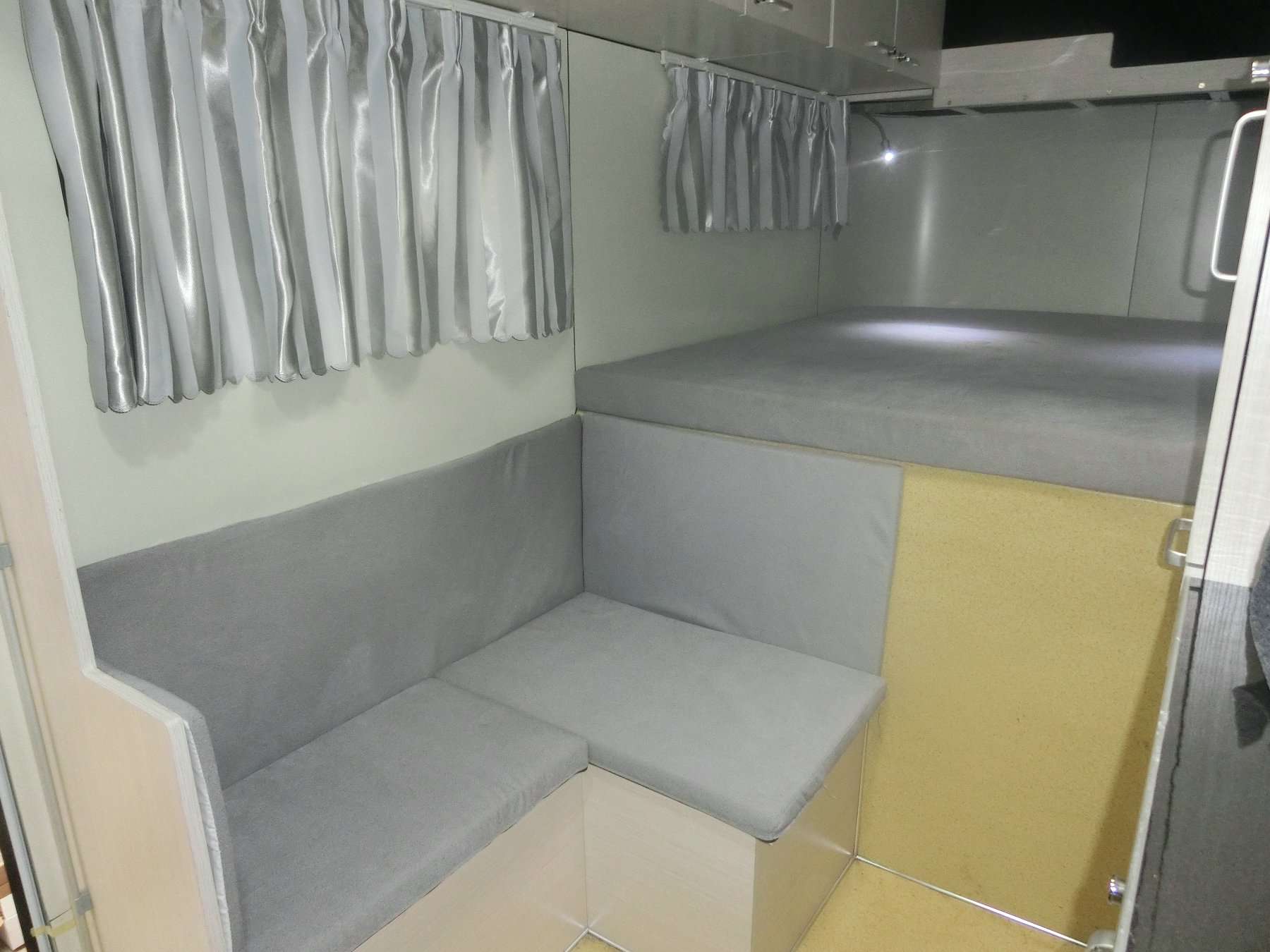

Sofa one group | |

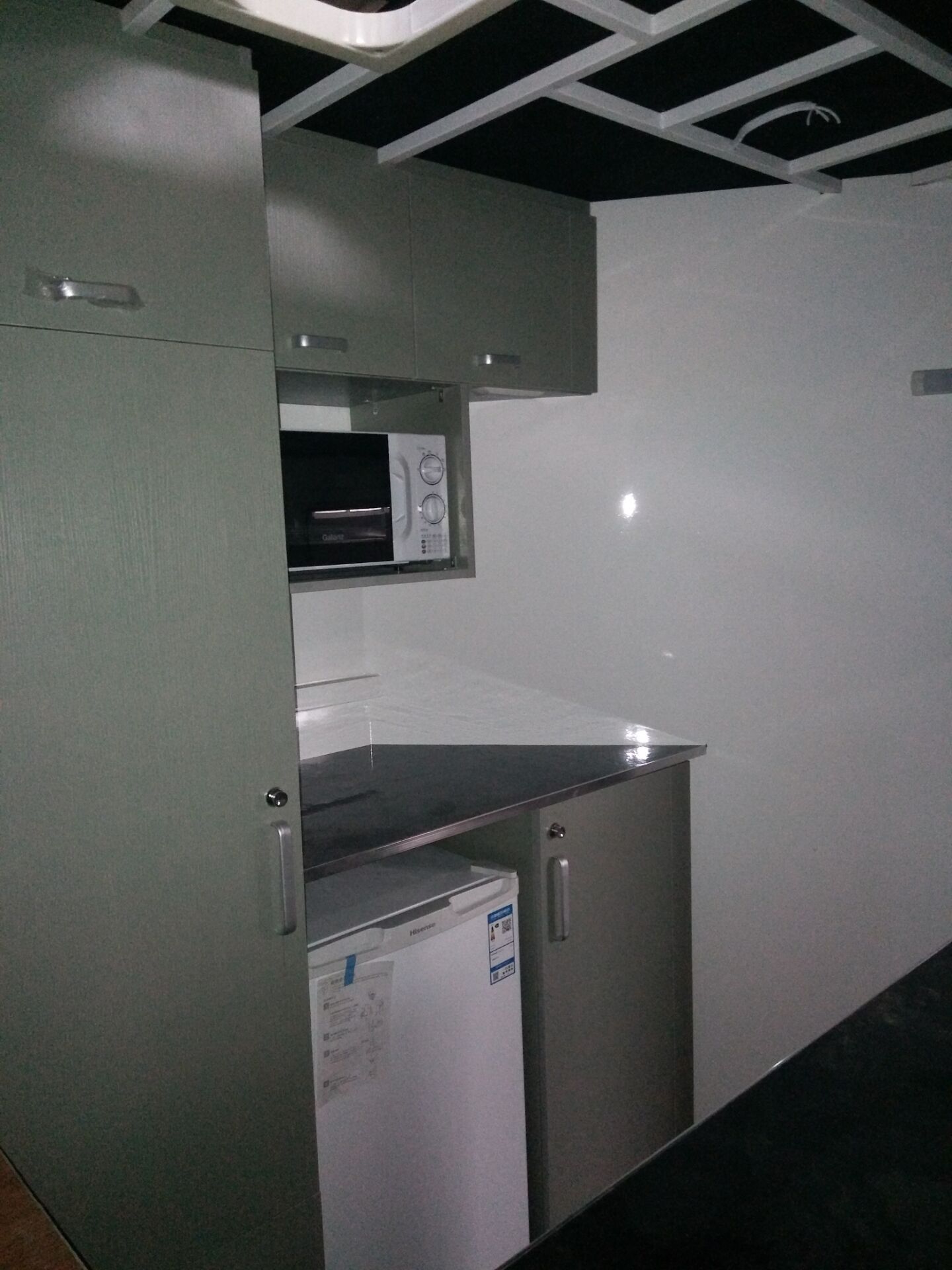

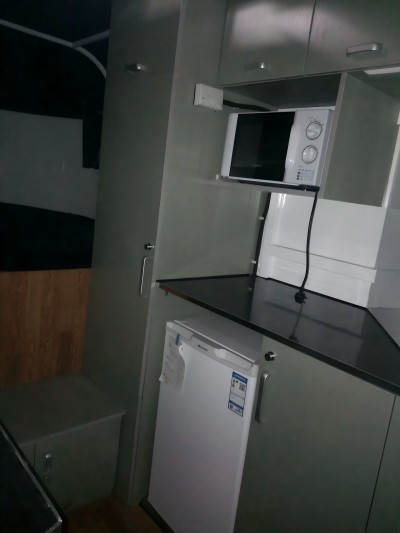

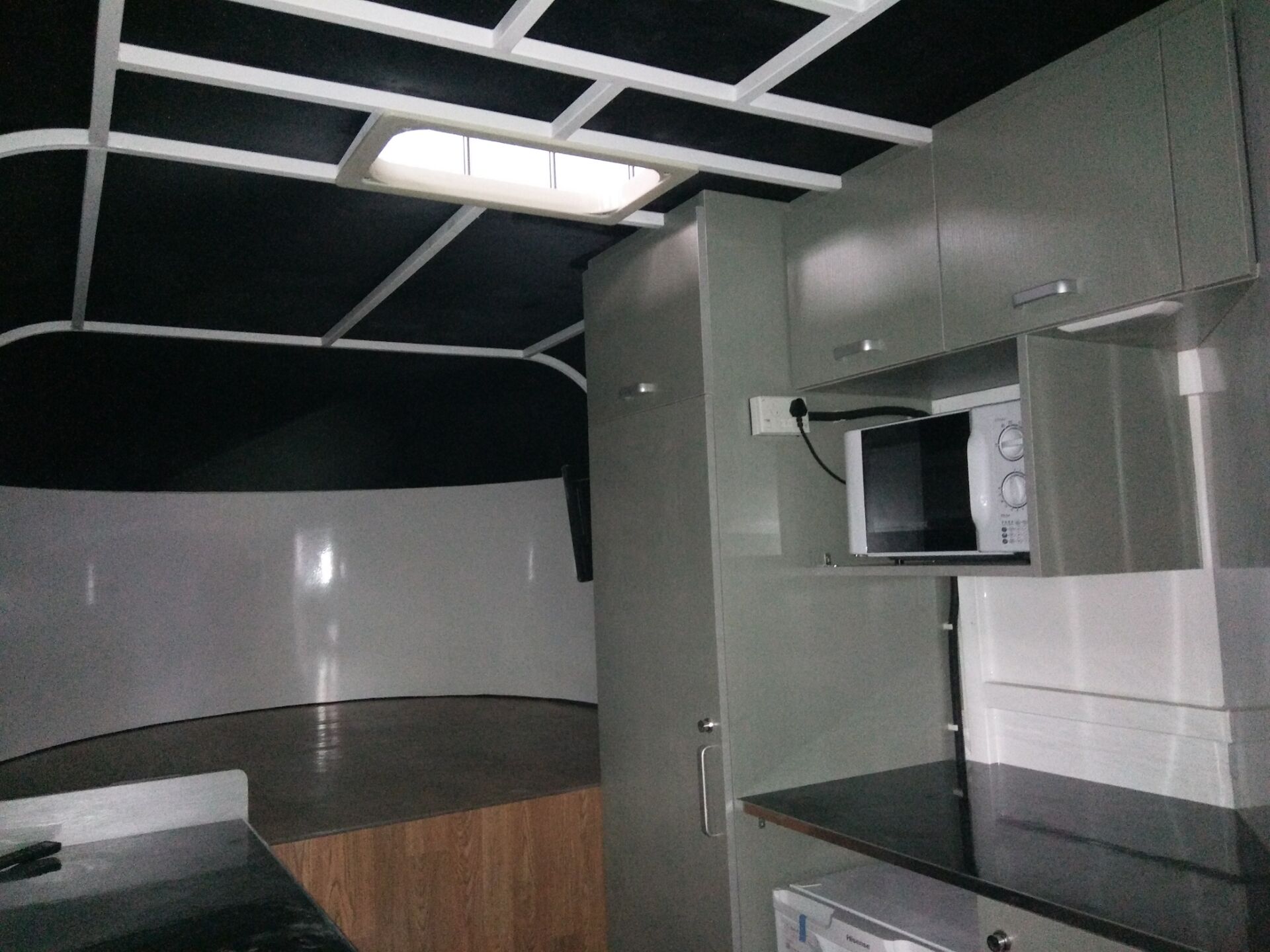

Fridge,Microwave,Air-condition,Awning,Battery and charger | |
Shower,Toilet | |
Dimensions | Overall Dimension (L x W x H: mm): 8660x 2500 x 2590 |
Body Dimension (L x W x H: mm): 8050x 1980 x 2230 | |
Length of Tone (mm):2375 | |
Empty Weight | 2800 KG |
Carrying Capacity | 4000 KG |

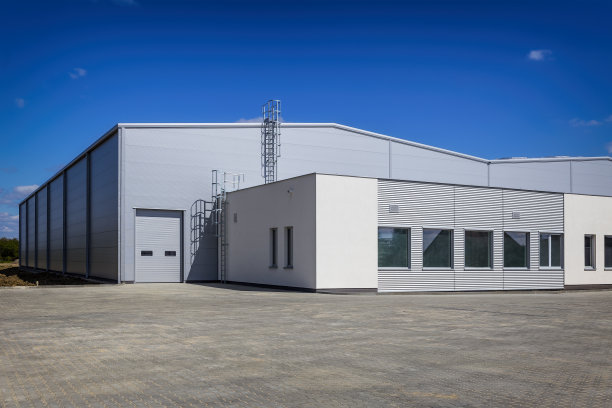

As one of the important horse trailer producer in China , with many years of experiences in production. We are acquainted with every form of horse trailer in Australia and we can produce personalised horse trailers as per your request.
As we are a manufacturer, we can furnish trailers of immoderate incredible to you at the fine price. We think about that we will be your exceptional accomplice in China!
